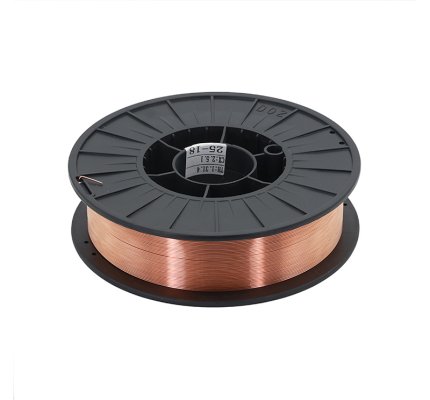

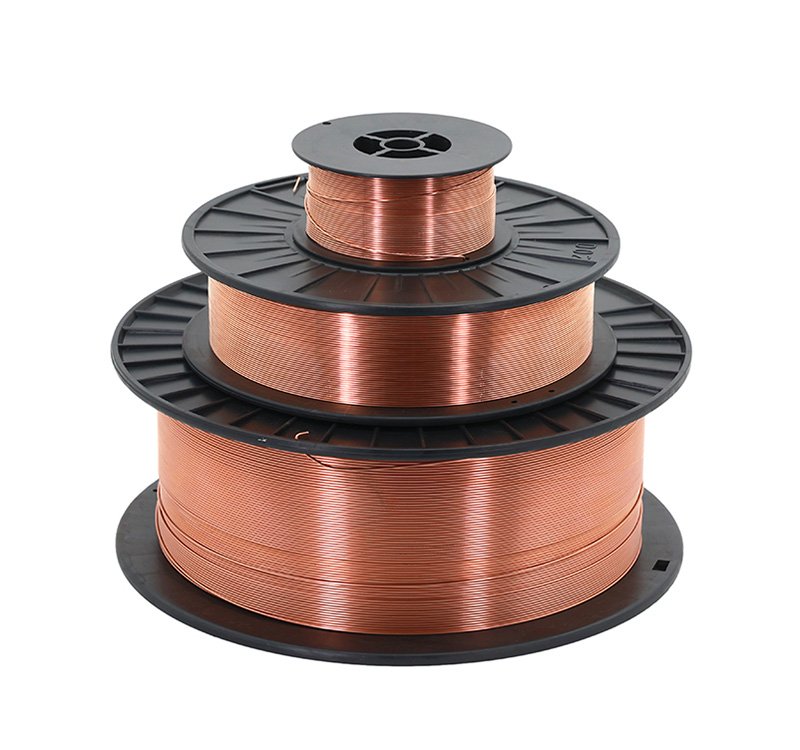

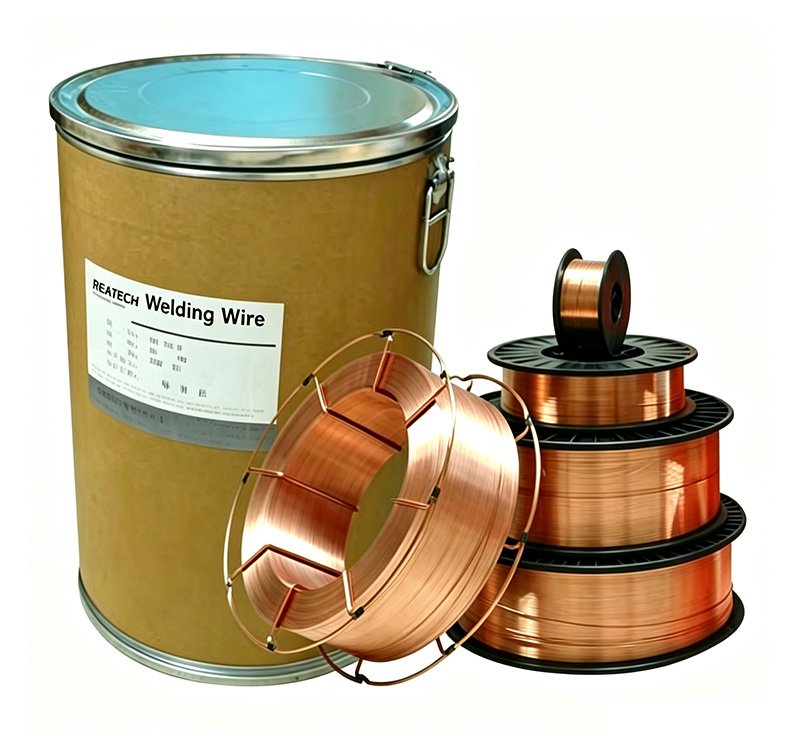

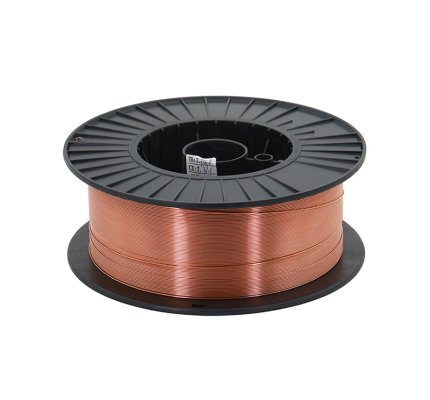

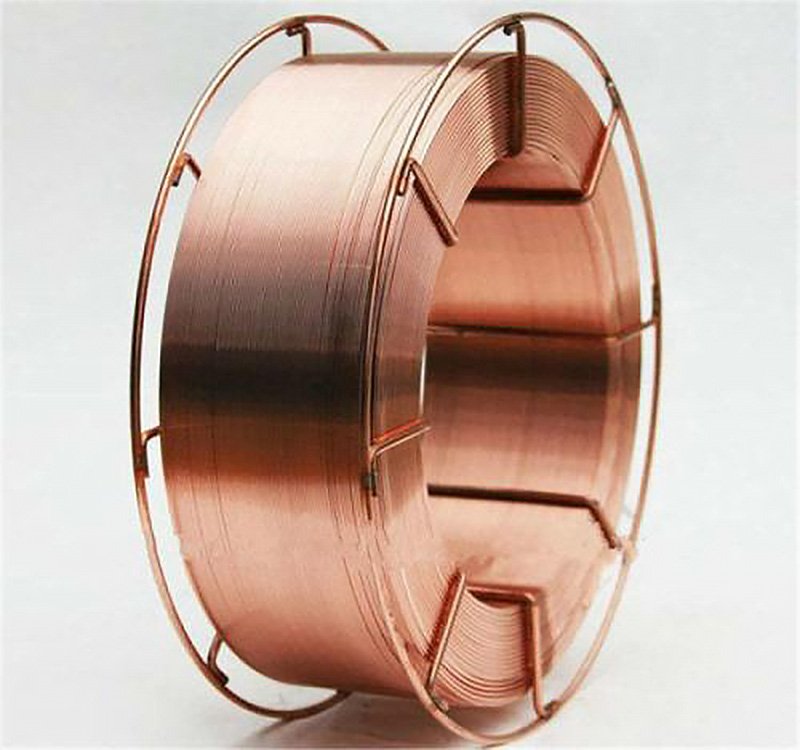

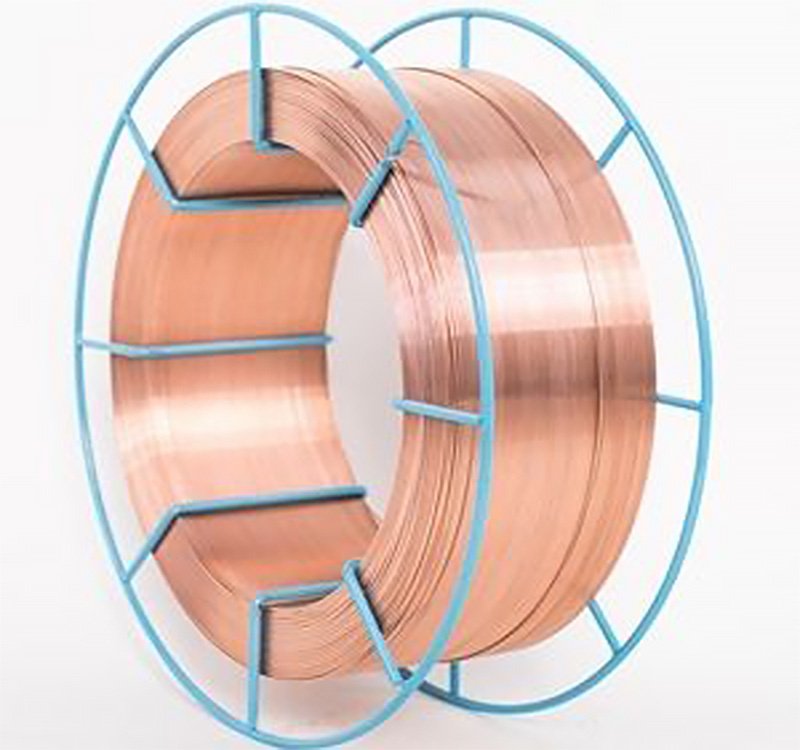

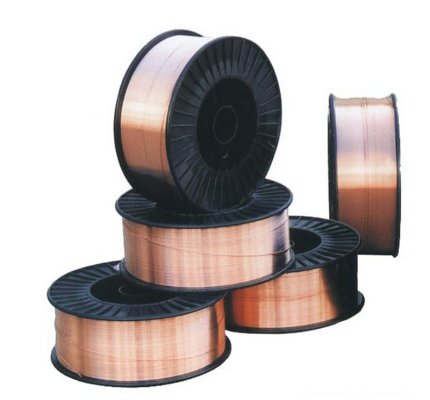

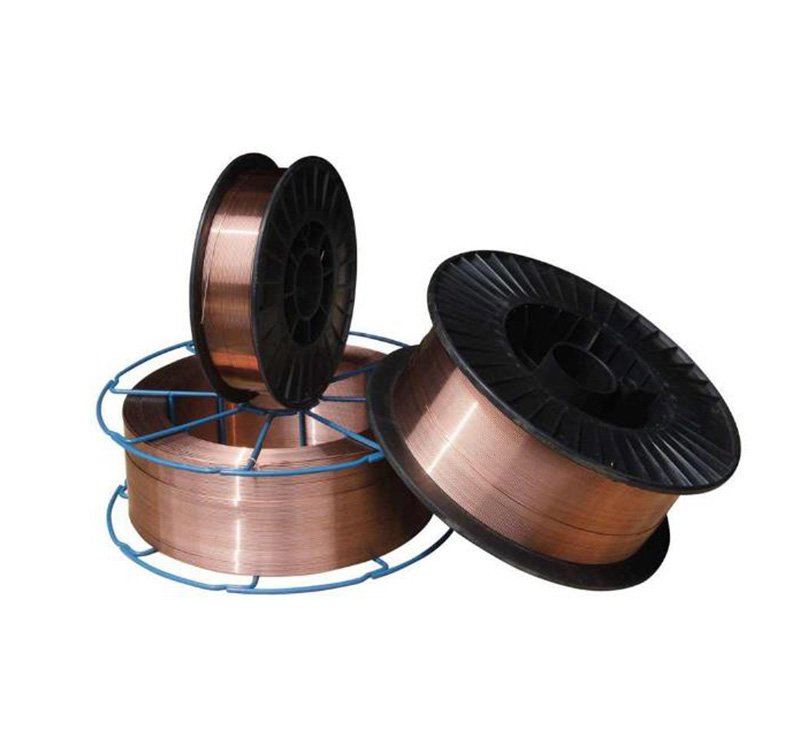

Welding Wire ER70S-G

The ER70S-G welding wire is a 500MPa grade carbon steel welding wire. The inclusion of titanium (Ti) element in the wire refines the molten droplets and weld metal grains, resulting in excellent high-current welding performance, superior impact toughness, and minimal spatter and smoke generation.

Inquiry Add To Cart

Product Details

Classification：

GB/T 8110 ER50-G

AWS A5.18 ER70S-G

Application: It is used for the welding of carbon steel and low-alloy steel structures of the corresponding strength level, and can be used in construction machinery, shipbuilding, vehicle manufacturing and other industries.

Chemical Composition Of Welding Wires:(Mass Fraction) %

Item	C	Mn	Si	S	P	Ni	Cr	Ti	Al	Cu
Typical Value	0.066	1.48	0.86	0.011	0.012	0.013	0.023	0.17	0.007	0.109

Mechanical Properties Of Deposited Metal

Item	Tensile strength Rm/Mpa	Yield strength ReL/Rp0.2 Mpa	Elongation A%	Impact value KV2(J) -30℃	Shielding Gas
Guarantee Value	≥500	≥420	≥22	≥47	20%CO2+80%Ar
Typical Value	560	480	27	88	20%CO2+80%Ar

Recommended Welding Parameter:(DC+)

Wire Size(mm)	0.8	1.0	1.2	1.6
Welding	50-180	70-230	80-350	120-500
Current(A)

Notes:

1. Impurities such as rust, oil, and moisture must be removed from the weldment before welding.

2. The energy of the welding line will directly affect the mechanical properties of the weld. The magnitude of the line energy depends on the level of importance of the structure. The more important the structure, the smaller the line energy should be used.

3. The welding parameters provided are for reference only. The user should formulate the welding specification for suitable production according to the specific situation.
