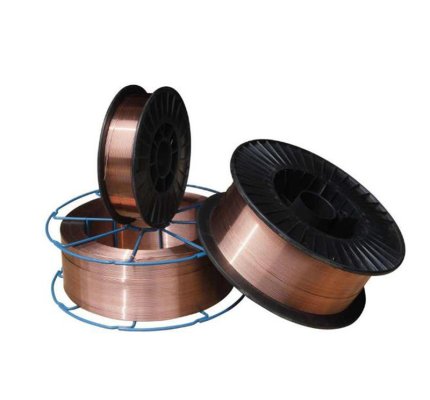

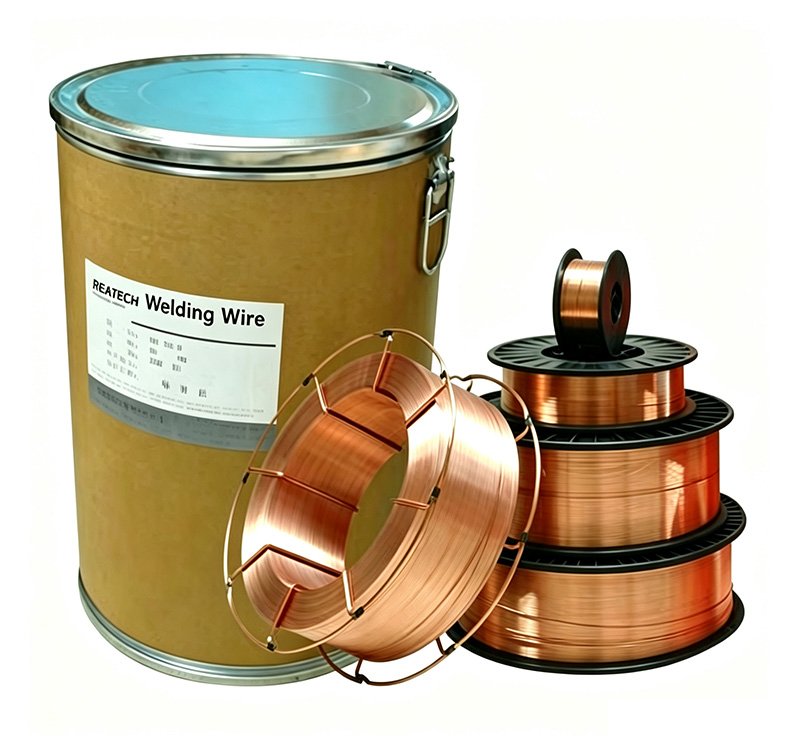

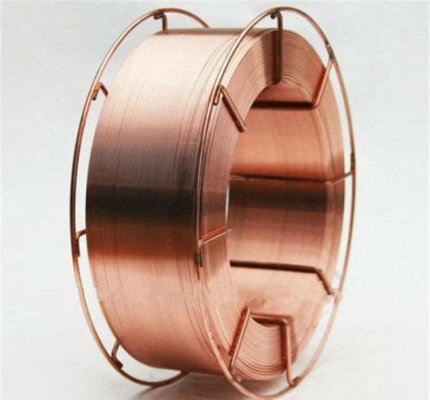

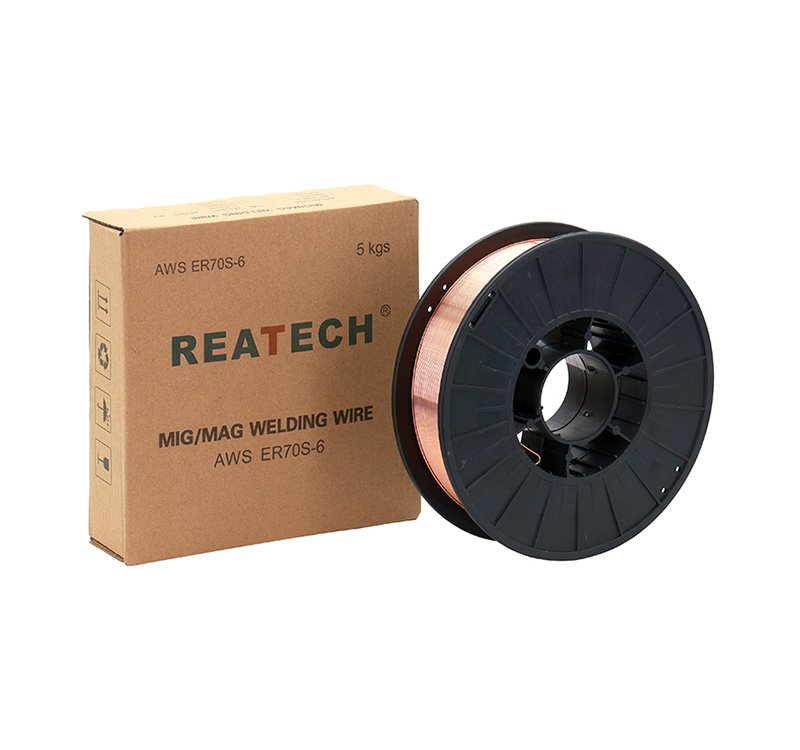

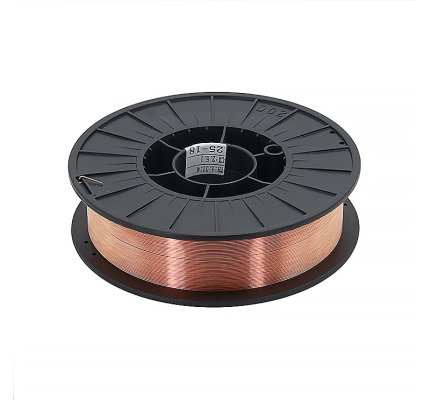

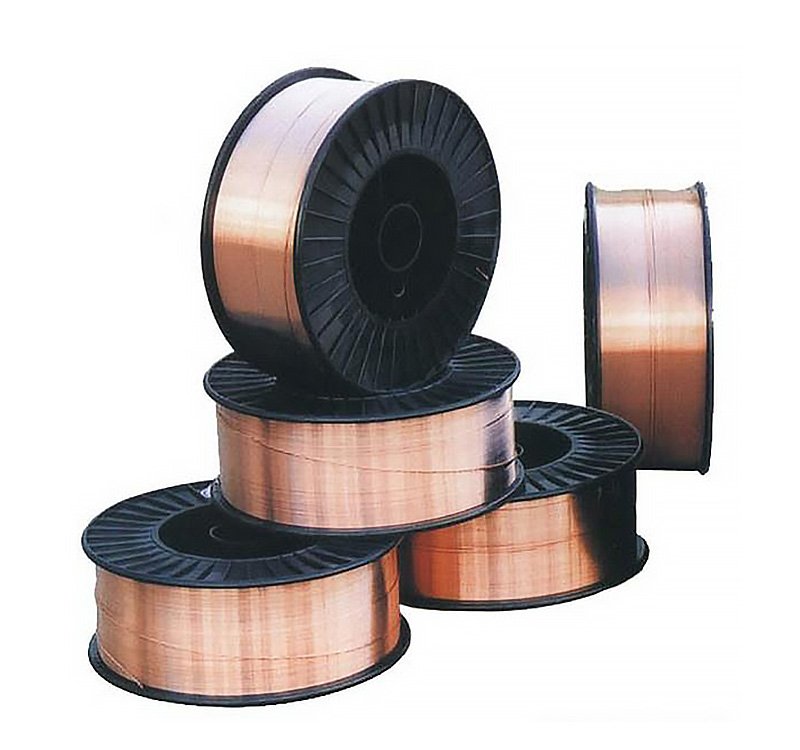

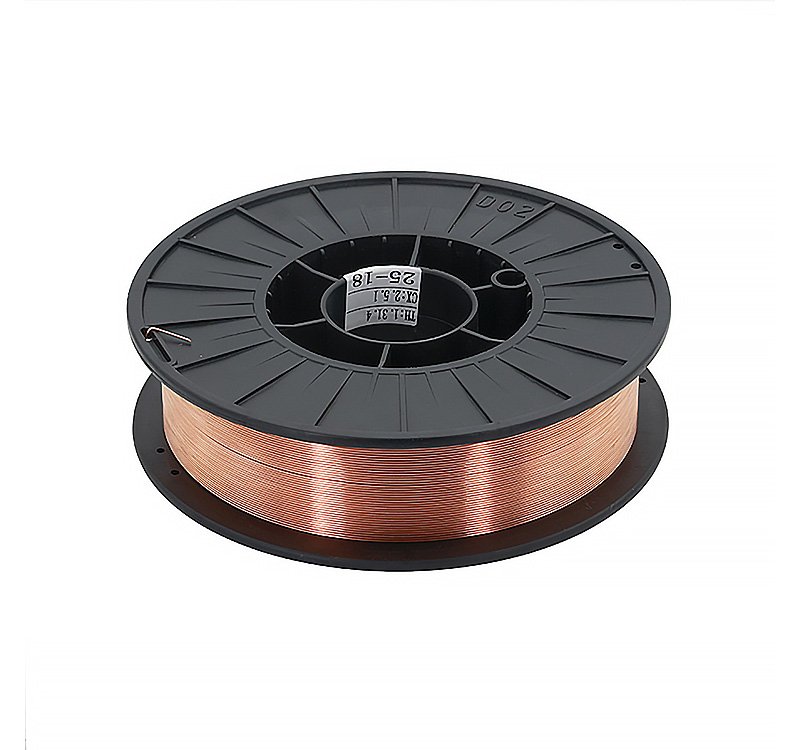

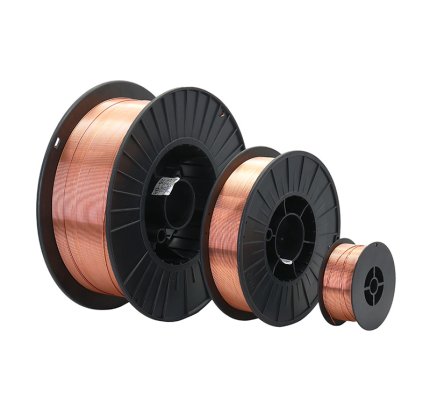

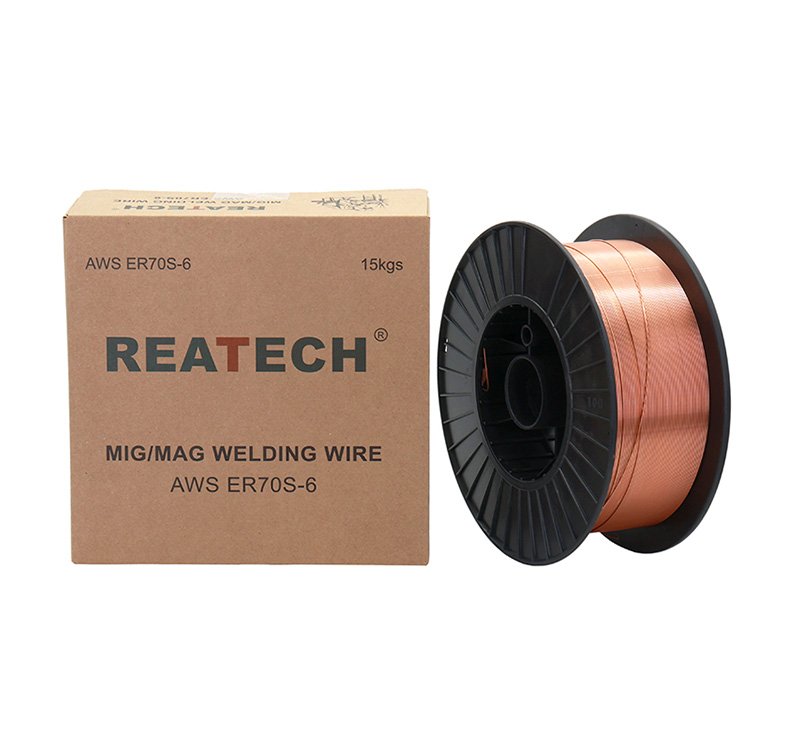

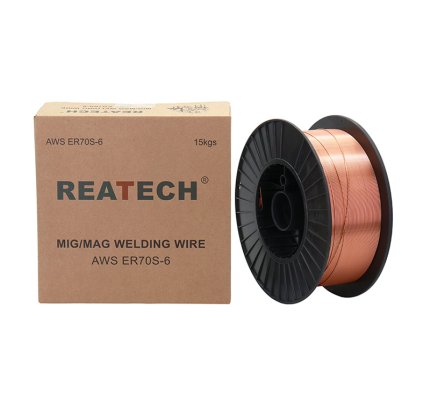

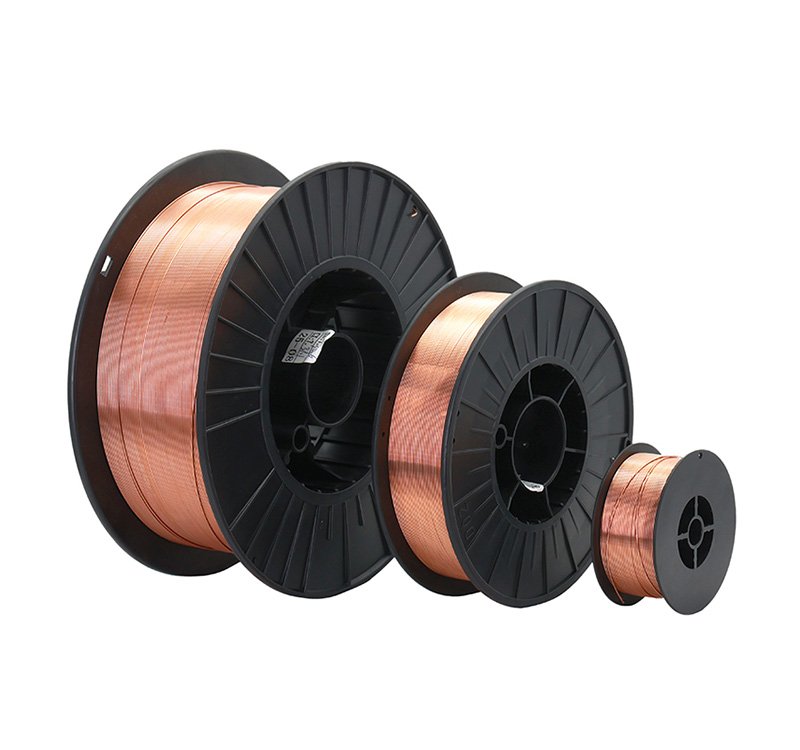

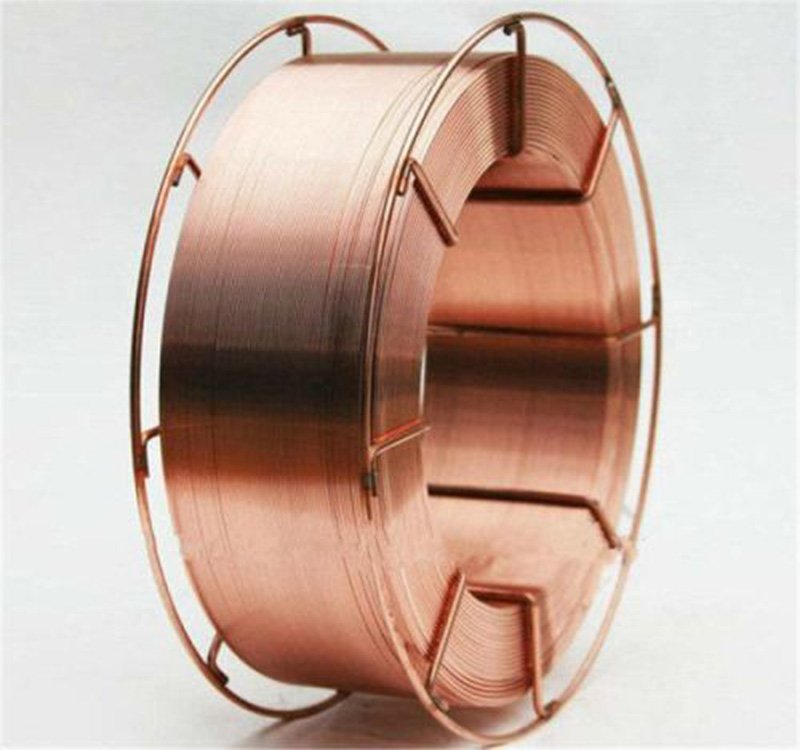

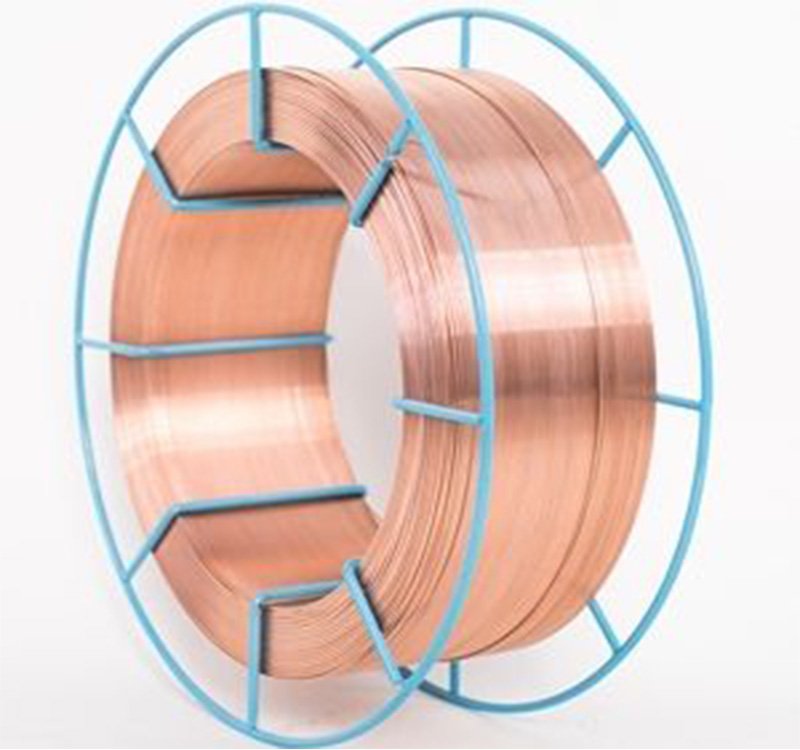

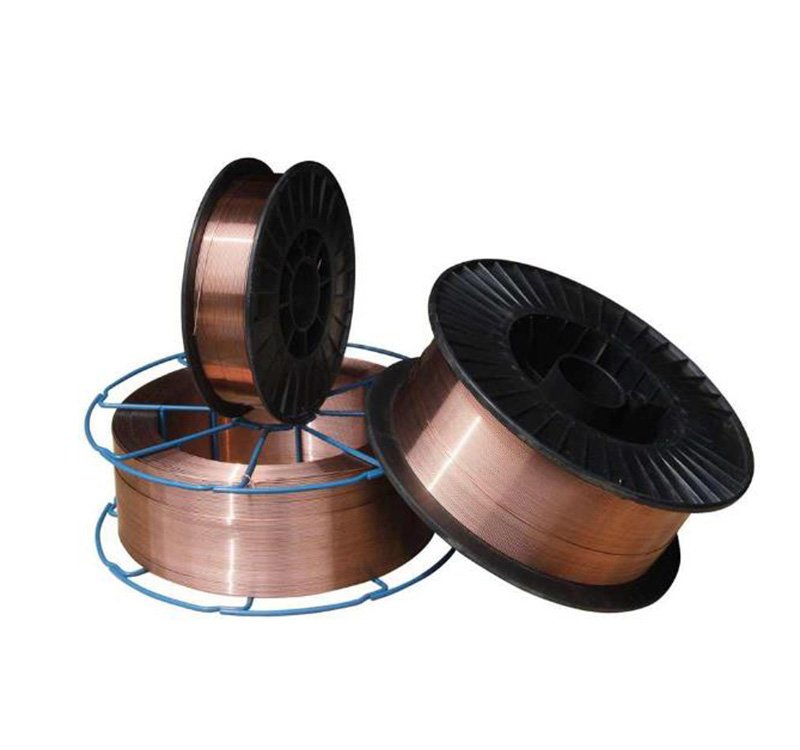

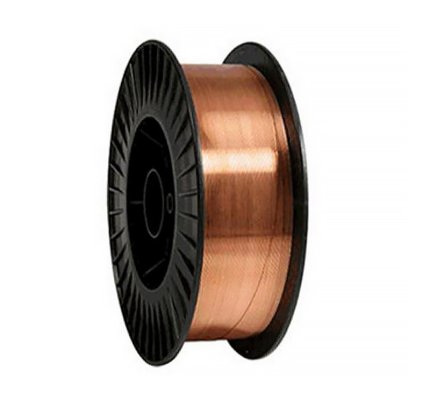

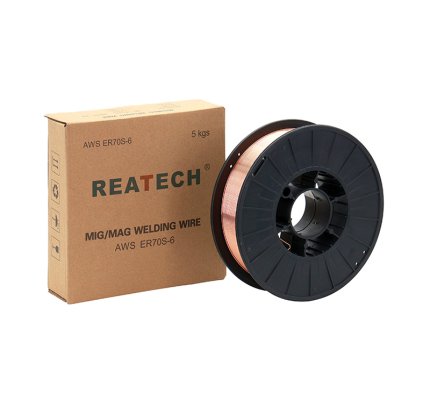

Welding Wire ER70S-6

The ER70-6 is featured with less welding splash, nice welding appearance, high deposition efficiency, small porosity sensitivity of deposited metal, and good weldability across a wide range of welding currents in all positions.

Inquiry Add To Cart

Product Details

Classification：

GB／T 8110 ER50-6

AWS A5.18 ER70S-6

ISO 14341-A-G424C13Si1

Application: Suitable for welding the relevant strength carbon steel and low alloy steel structures. lt can be used for welding engineering machinery, bridge construction, ships. vehicle manufacturing, petrochemical industries etc.

Chemical Composition Of Welding Wires:(Mass Fraction) %

Item	C	Mn	Si	S	P	Ni	Cr	Mo	V	Cu
Guarantee Value	0.06-0.14	1.40-1.60	0.80-1.00	≤0.025	≤0.025	≤0.15	≤0.15	≤0.15	≤0.03	≤0.35
Typical Value	0.08	1.5	0.85	0.012	0.013	0.03	0.03	0.013	0.01	0.15

Mechanical Properties Of Deposited Metal

Item	Tensile strength	Yield strength	Elongation	Impact value KV2(J)		Shielding
Item	Rm/MPa	ReL/Rp0.2 MPa	A%	-30℃	40℃	Gas
Guarantee Value	500-640	≥420	≥20	≥47	≥47	CO2
Typical Value	545	435	30	98/110/122	80/89/102	CO2

Recommended Welding Parameter:(DC+)

Wire Size(mm)	0.8	1.0	1.2	1.4	1.6
Welding Voltage(V)	22-26	22-28	24-30	26-32	28-34
Welding	50-150	70-230	100-300	120-340	240-380
Current(A)	50-150	70-230	100-300	120-340	240-380
Gas Flow(L/min)	15	15-20	15-25	20-25	20-25

Notes:

1. Impurities such as rust, oil, and moisture must be removed from the weldment before welding.

2. The energy of the welding line will directly affect the mechanical properties of the weld. The magnitude of the line energy depends on the level of importance of the structure. The more important the structure, the smaller the line energy should be used.

3. The welding parameters provided are for reference only. The user should formulate the welding specification for suitable production according to the specific situation.
