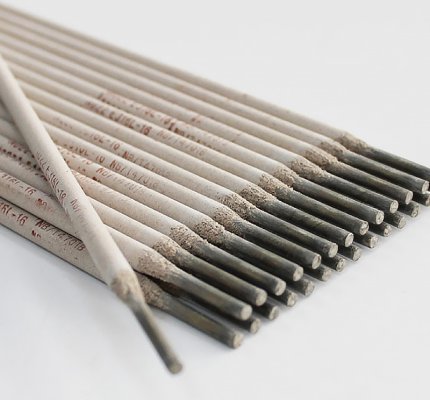

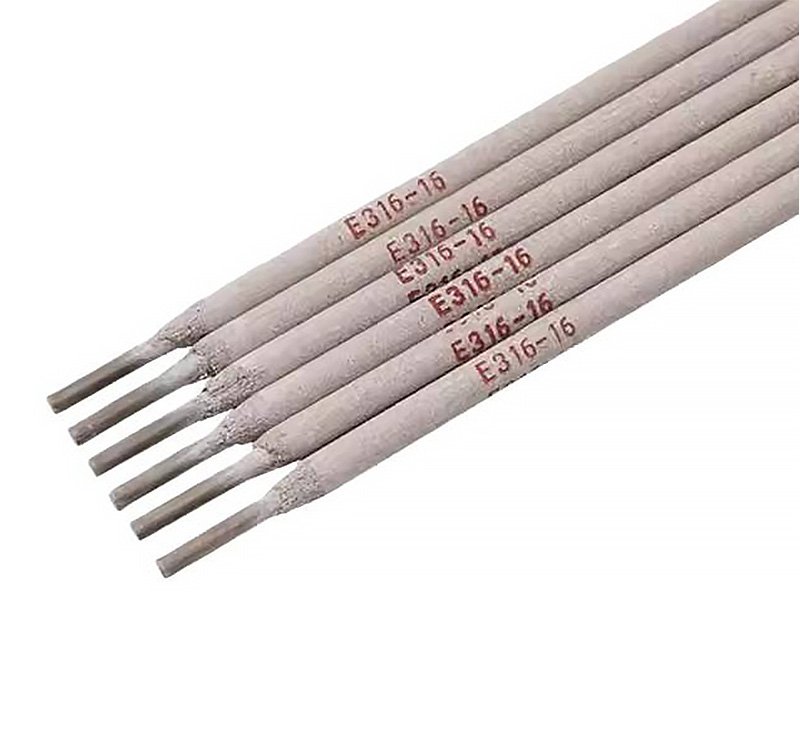

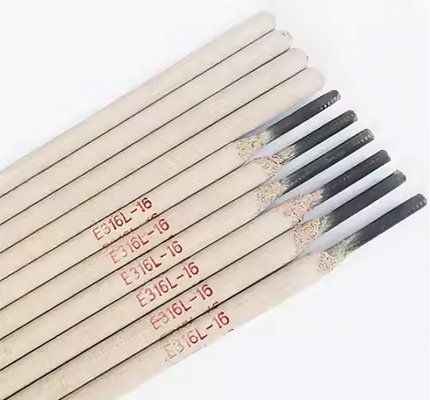

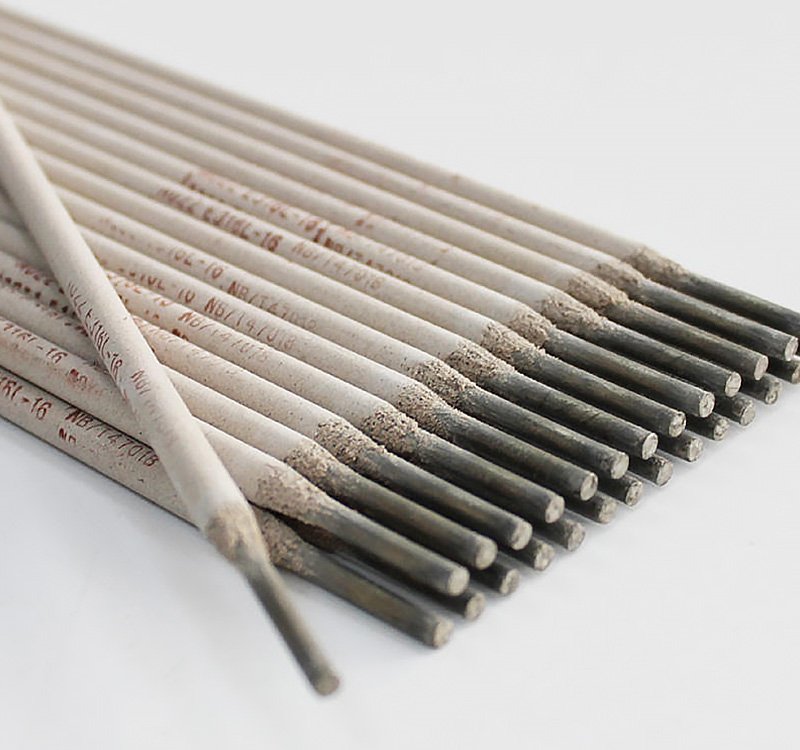

Stainless Steel Welding Electrodes AWS E316L-16

Standard /Classification

AWS A5.4: E316L-16

EN ISO 3581-A: E 19 12 3 LR 1 2

GB/T 983: E316L-16

JlS Z 3221: ES316L-16

APPLICATIONS:

E316L-16 stainless steel welding electrodes are widely used for welding 316L/316 stainless steel equipment, chemical tanks, pressure vessels, pipelines, heat exchangers, marine structures and corrosion-resistant industrial machinery. Suitable for applications requiring excellent resistance to pitting corrosion, acids and chloride environments.

ATTENTION:

1. Electrode must be approved by 320-350 'C for 1 hour before welding, dry the electrode when use it.

2. The rust, oil, water and other impurities of the weld must be removed before welding.

3.Recommended Dc power supply, because Ac welding has a shalow penetration,the curent should not be too large, in order to avoid the coating rednes and cracking

4. To minimize the amount of heat input and welding electrode oscillating amplitude should not be too big.

5. Preheat and interlayer-temperature should remain below 150 ℃
