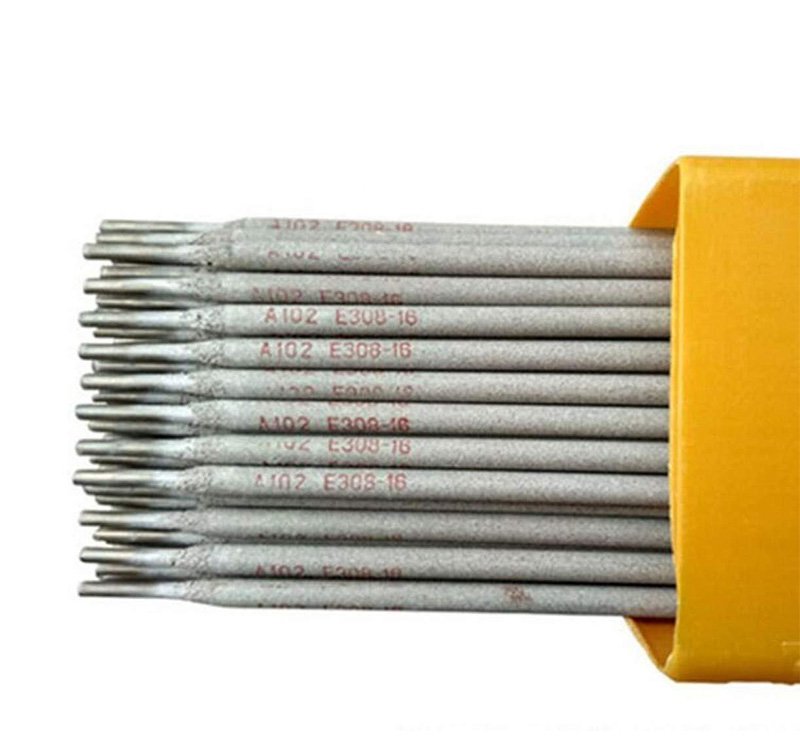

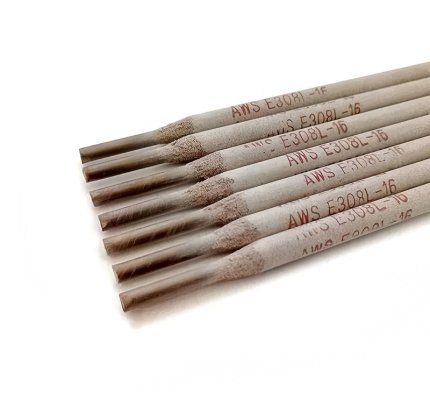

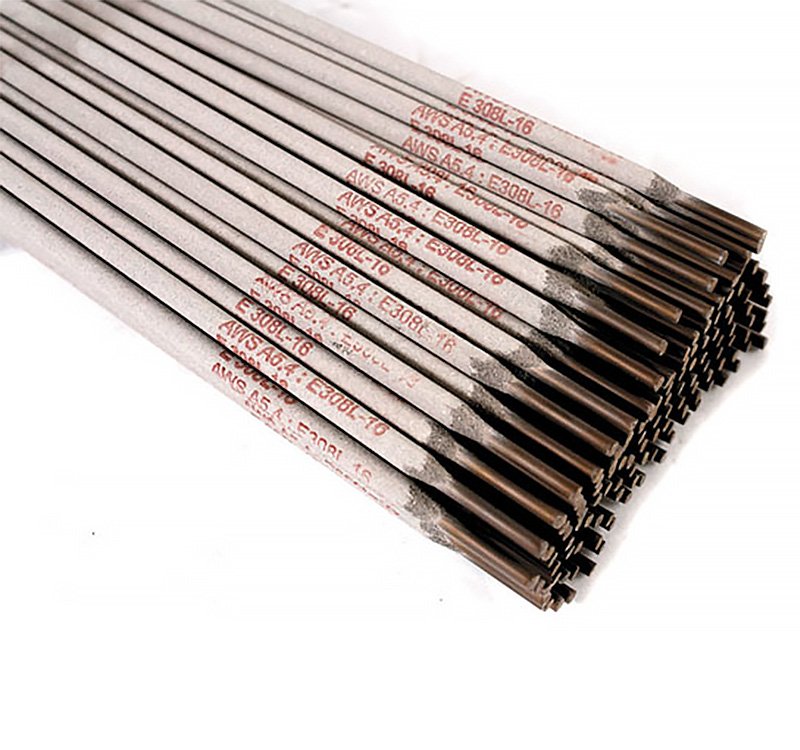

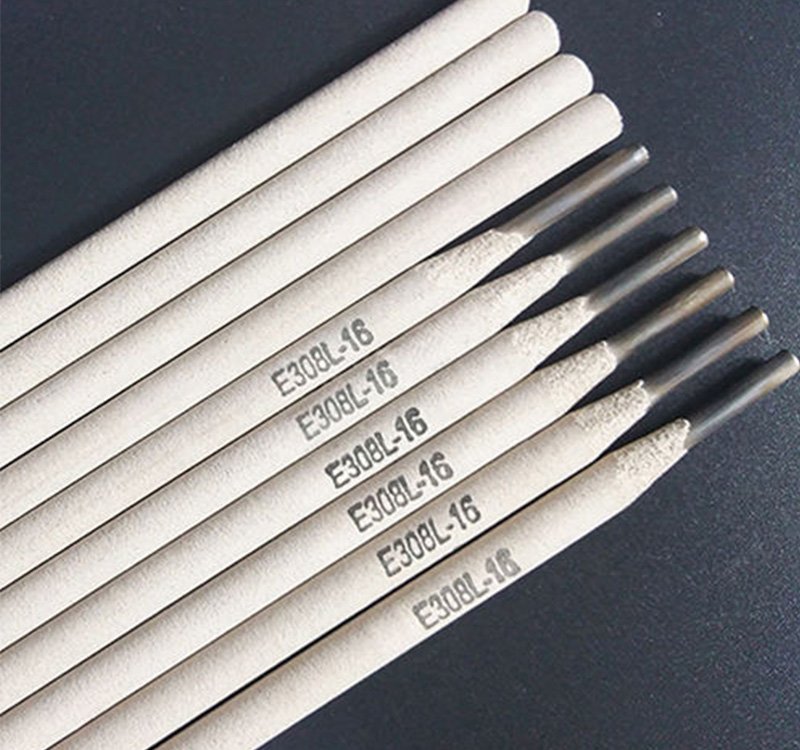

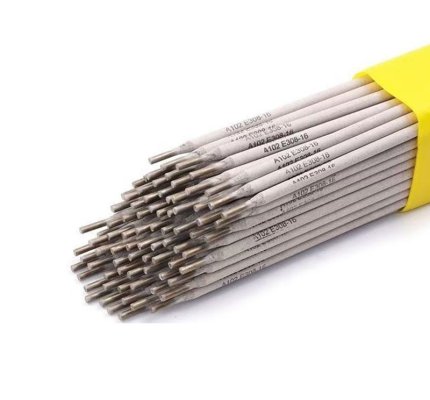

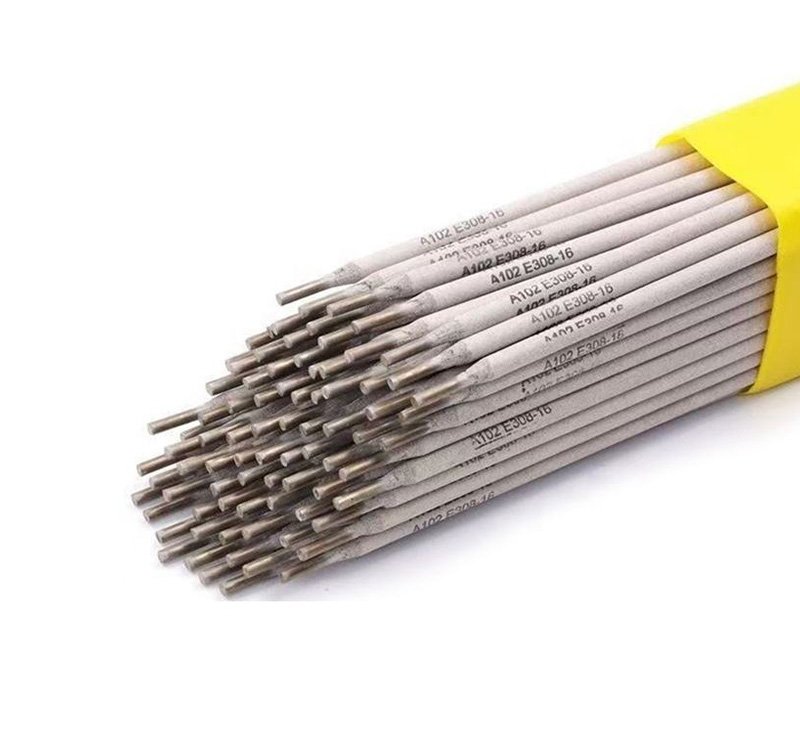

Stainless Steel Welding Electrodes AWS E308L-16

Standard/Classification:

AWS A5.4 E308L-16

EN ISO 3581-A: E 19 9 L R 1 2

GB/T 983 E308L-16

JIS Z 3221 ES308L-16

APPLICATIONS:

E308L-16 is suitable for welding low carbon 00cr18ni9 stainless steel structure, also can be used to the corrosion resistance of stainless steel structure, such as the 0cr19ni11ti, whose working temperature below 300 ℃, it is mainly used for manufacture of synthetic fiber, fertilizer, oil and other equipment.

ATTENTION:

1. Electrode must be approved by 320-350 'C for 1 hour before welding, dry the electrode when use it

2. The rust, oil, water and other impurities of the weld must be removed before welding.

3.Recommended Dc power supply, because Ac welding has a shallow penetration,the curent should not be too large, in order to avoid the coating redness and cracking.

4. To minimize the amount of heat input and welding electrode oscillating amplitude should not be too big.

5. Preheat and interlayer-temperature should remain below 150 'C
