The Hydraulic Hole Puncher is a versatile and efficient tool designed to effortlessly create precise holes in various materials. Equipped with an electric motor and a hydraulic system, it offers exceptional punching power and accuracy.

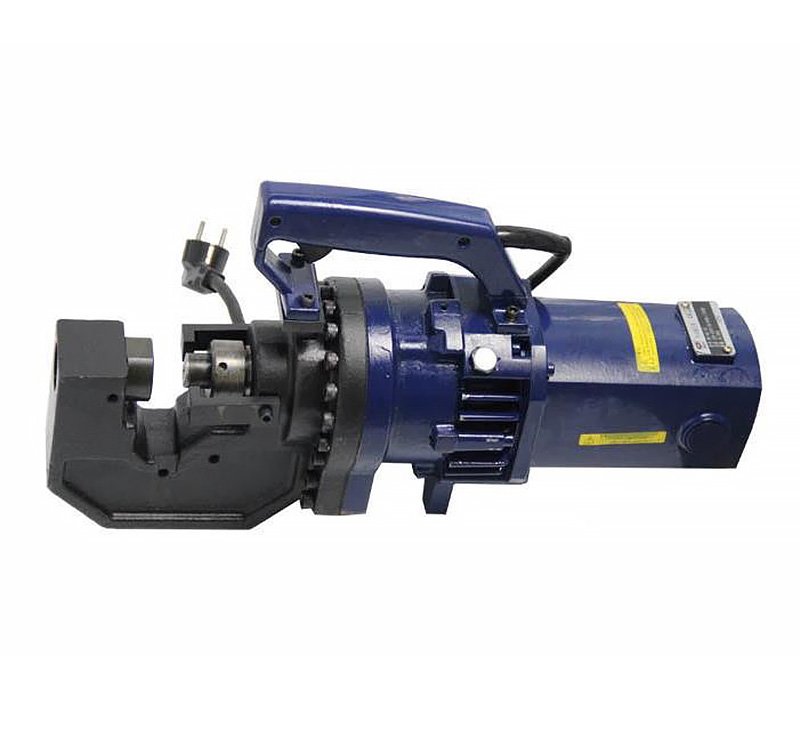

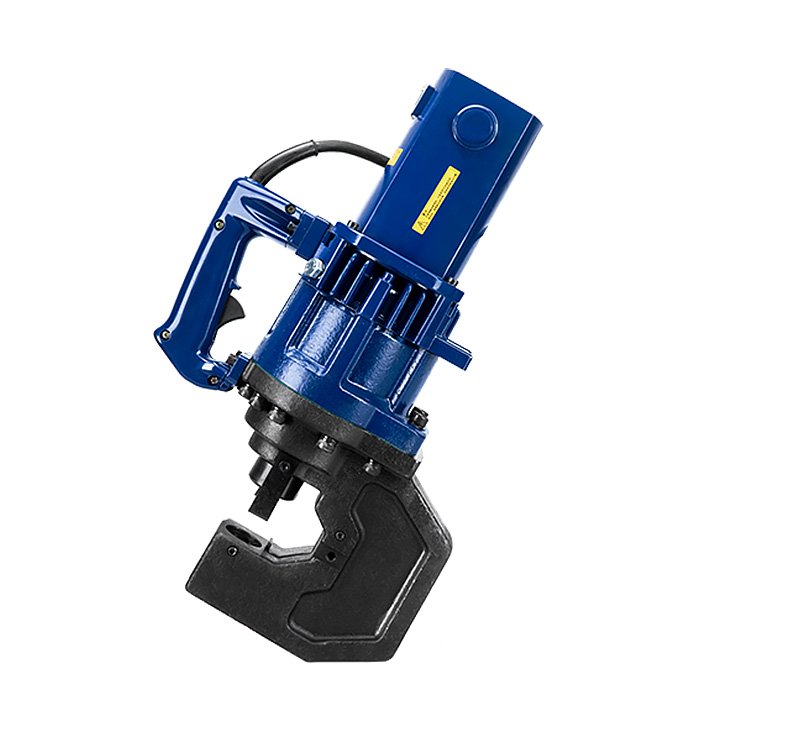

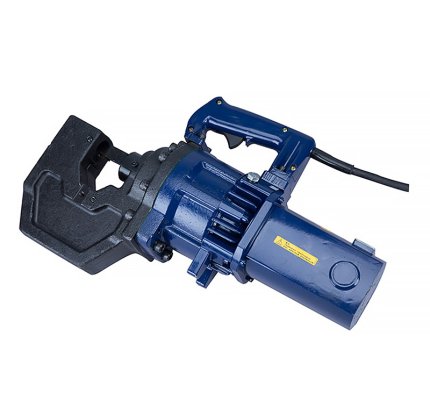

Hydraulic Hole Punchers MHP-32

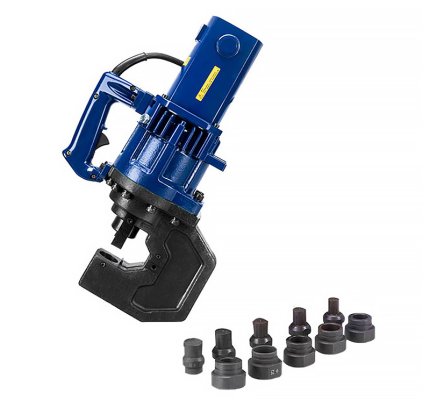

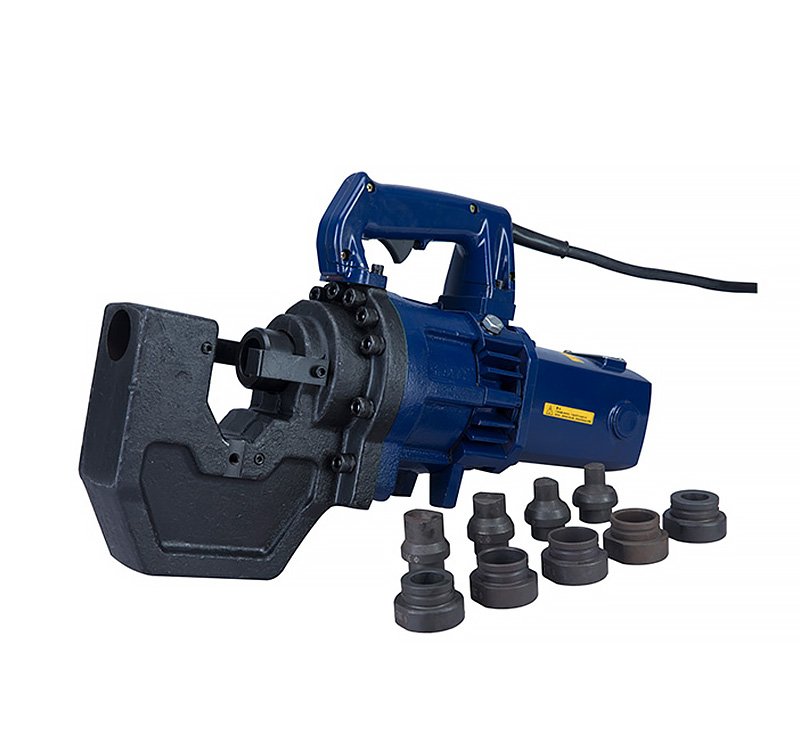

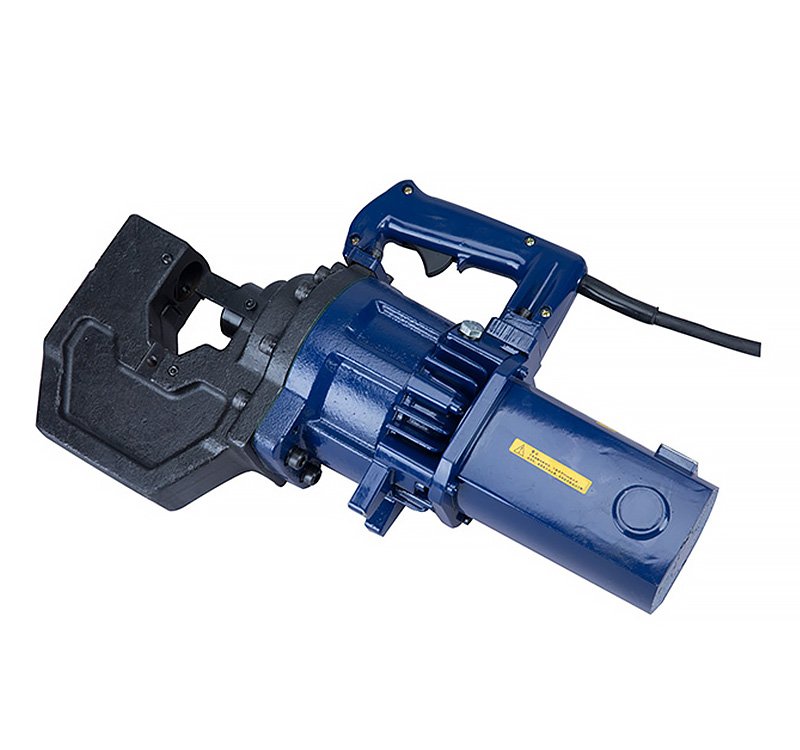

The Portable electric hydraulic puncher is used for punching steel, iron, copper, aluminum, formed steel, U-steel, I-steel and so on Small size, light weight, easy to operate, save effort and punch fast, and mold can be customized
Specifications
Model: MHP-32
Voltage: 220V/110V
Wattage: 3000W
Punching speed: 5s
Maximum Hole Diameter: 30.5mm
Max thickness: 15mm
Net weight: 34.5kg

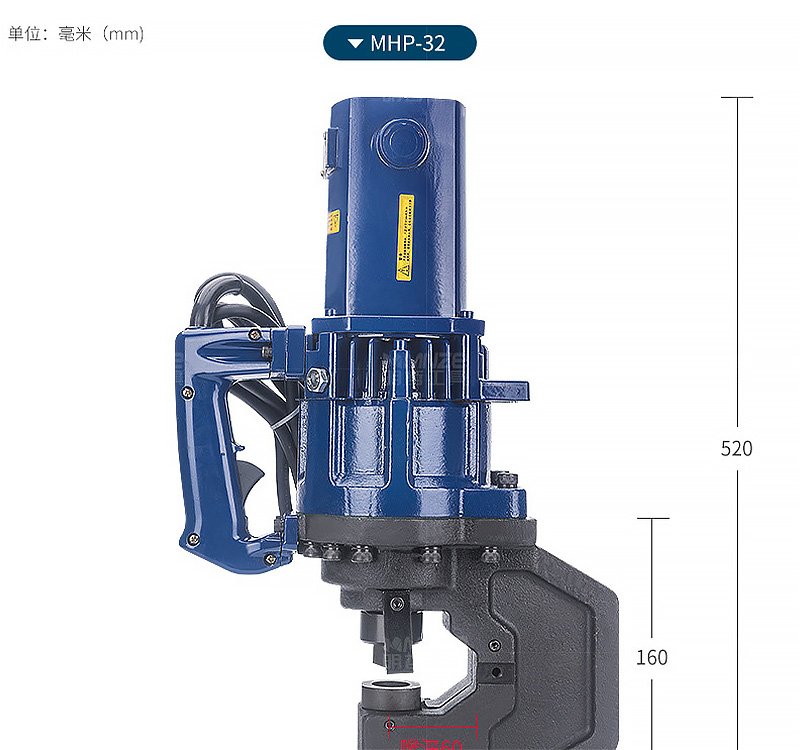

Machine size: 520mmx160mmx330mm
Gross weight: 47kg
Packing size: 570mmx230mmx375mm

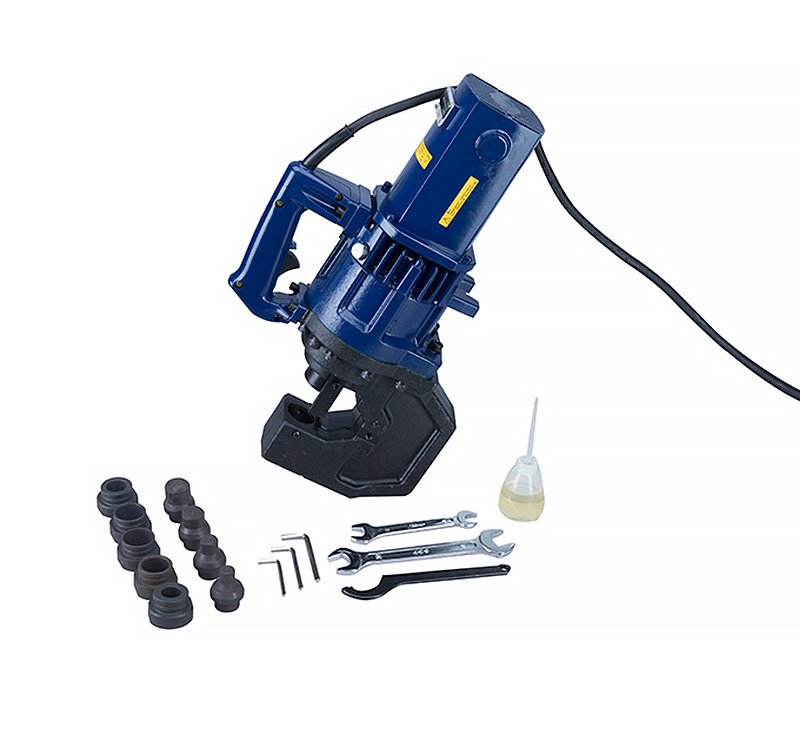

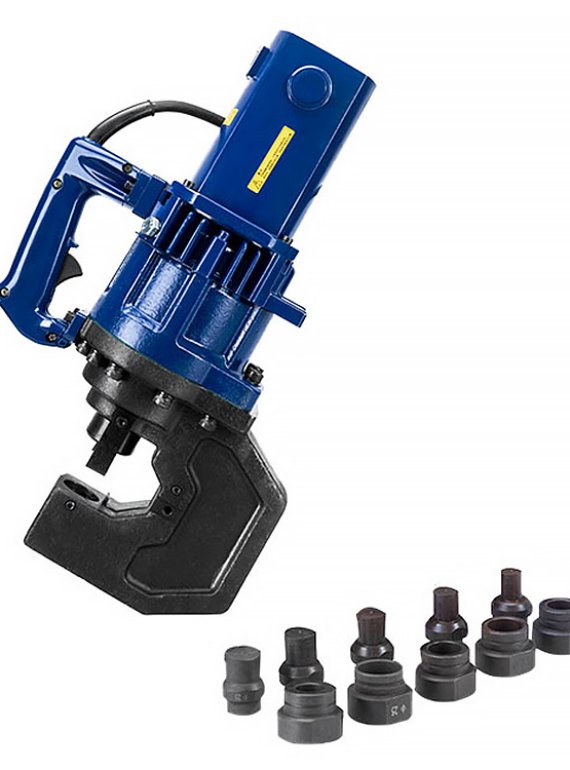

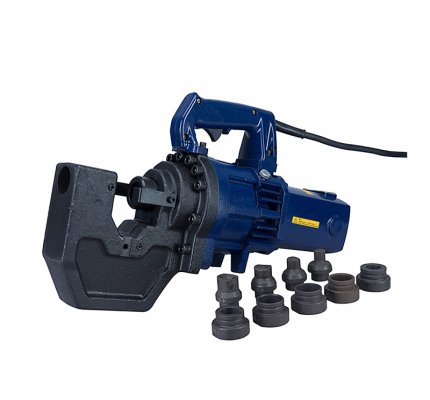

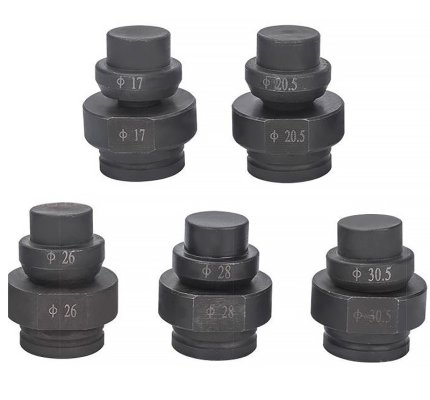

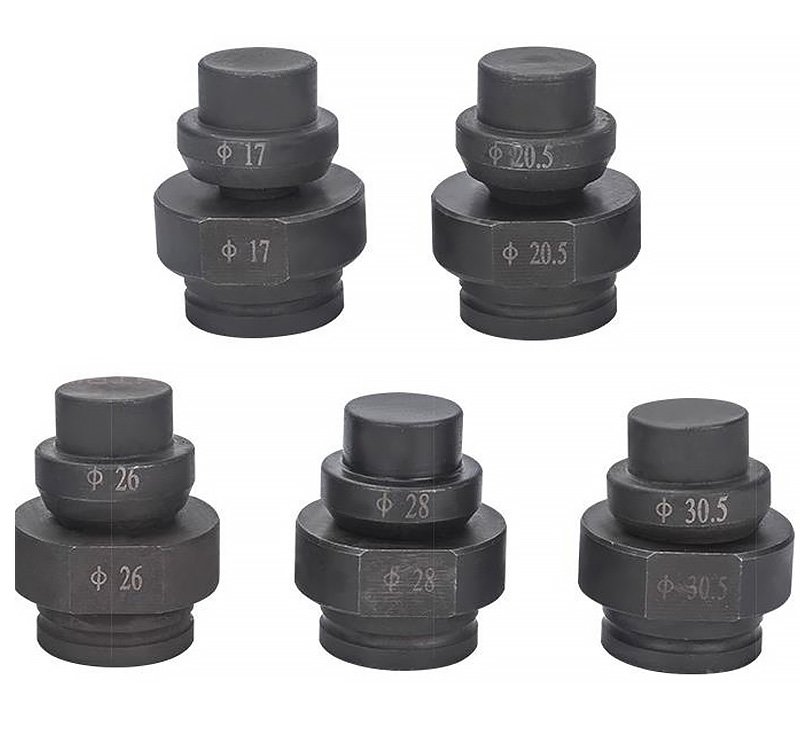

Mold hole diameter: 17mm/20.5mm/26mm/28mm/32mm (other size could be customized)
Certificate: CE RoHS PSE KC

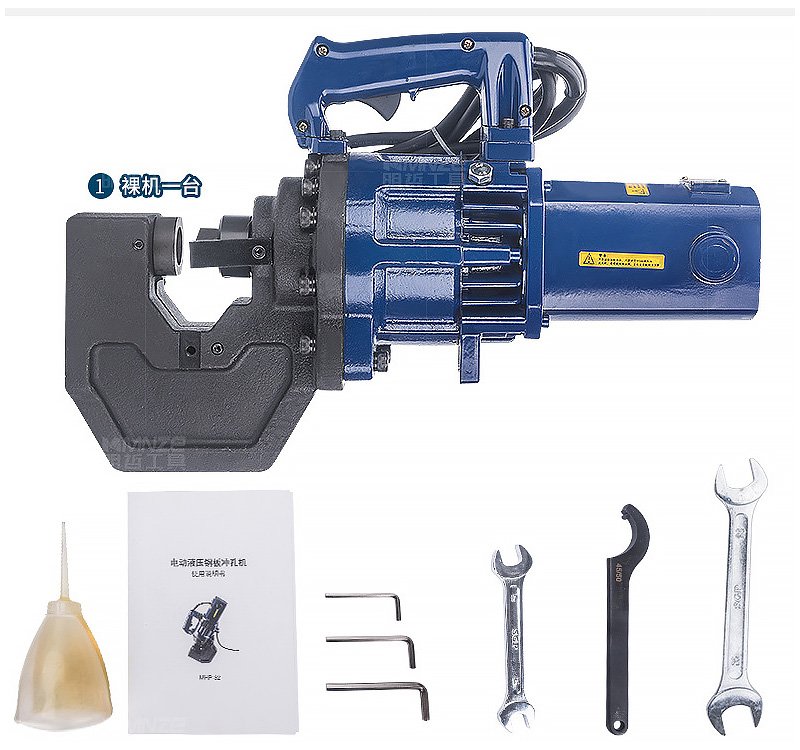

Package Inner iron box，outer 7-layer corrugated cardboard box
Model | MHP-20 | MHP-25 | MHP-32 |
Photo |  |  |  |
Voltage | 220V/110V | 220V/110V | 220V/110V |
Wattage | 900/1150w | 1700w | 3000w |
Punch Speed | 2s | 4s | 5s |
Throat Depth | 35mm | 45mm | 60mm |
Max. Round Dia. | 20mm | 25mm | 32mm |
Min. Round Dia. | 6mm | 11mm | 17mm |
Punch Thickness | 6mm | steel plate 10mm | steel plate 12mm |
Machine Weight | 12kg | 24.5kg | 35kg |
Machine Size | 500*195*100mm | 500*150*255mm | 520*170*270mm |
Gross Weight | 20kg | 32kg | 43kg |
Package Size | 545*310*180mm | 565*230*345mm | 630*240*350mm |
Packing | one pc/metal box/cardboard carton | ||
Attached Mold | Φ6.5/9/13/17/20.5mm | Φ11/13/17/21/25.5 | Φ17/20.5/26/28/30.5mm |
