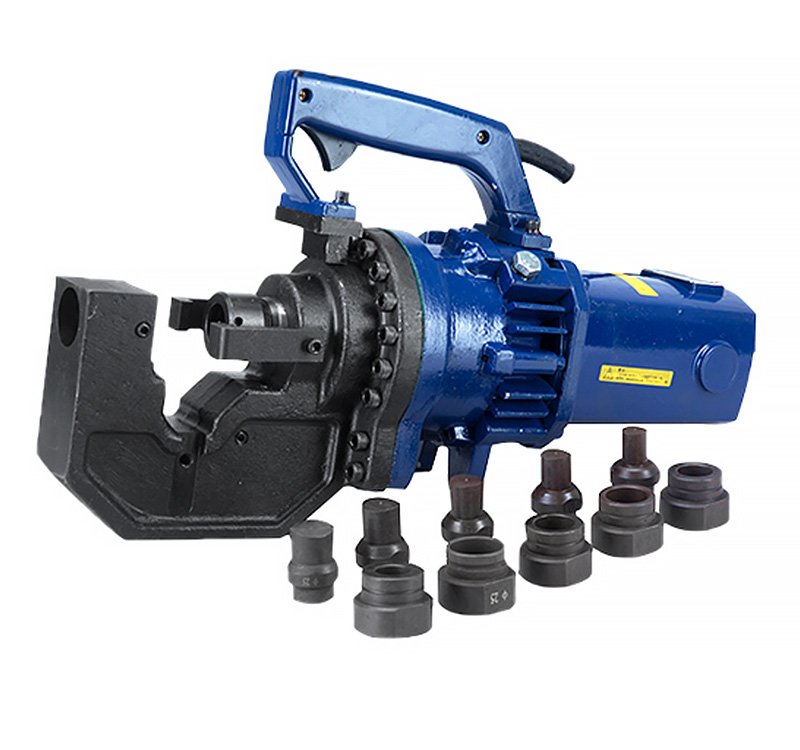

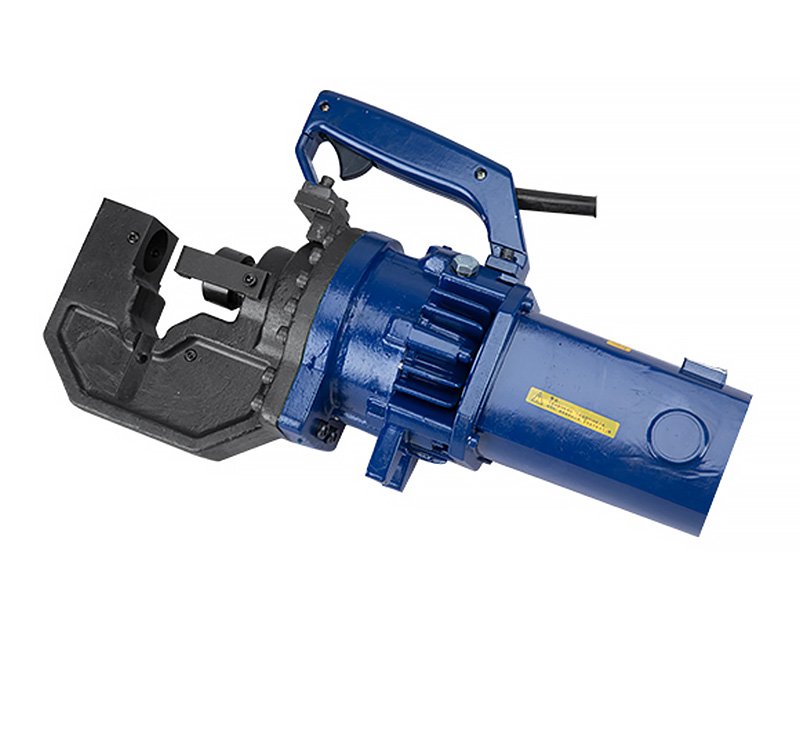

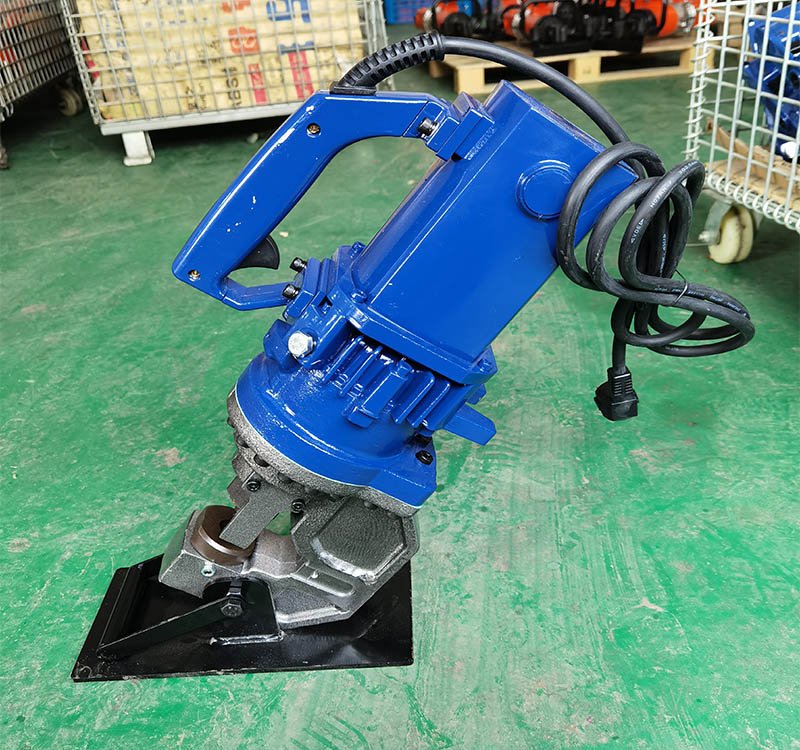

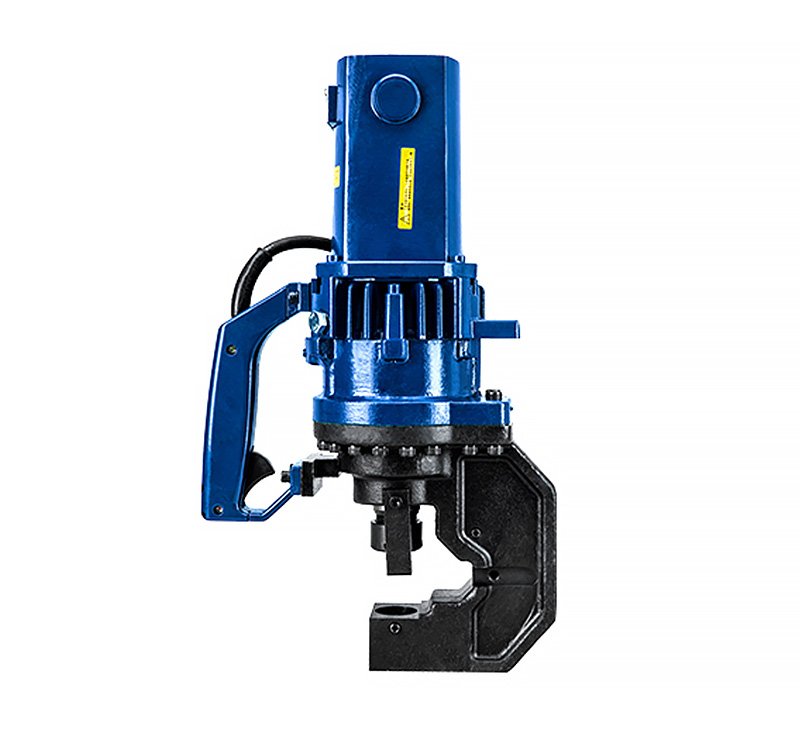

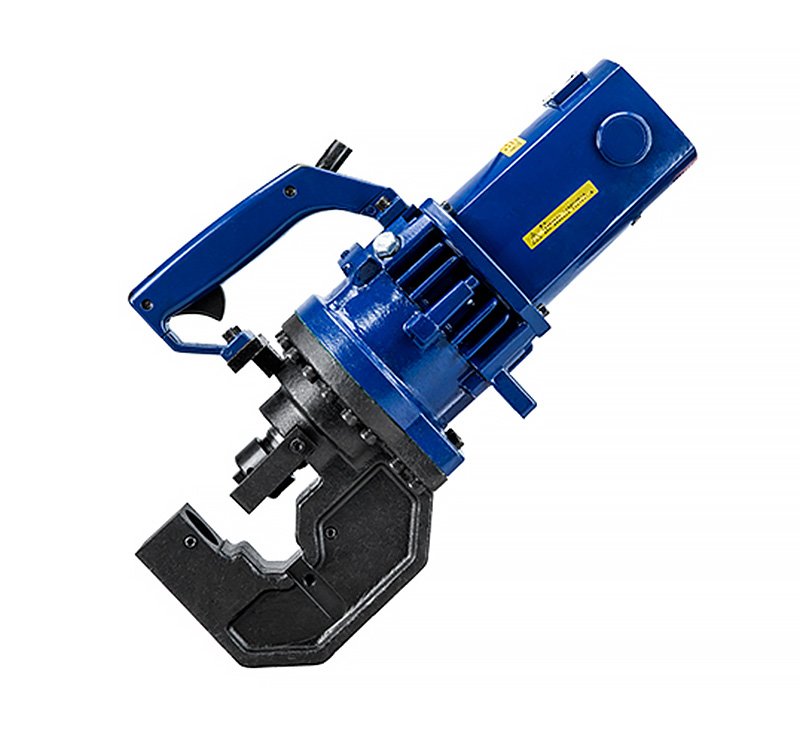

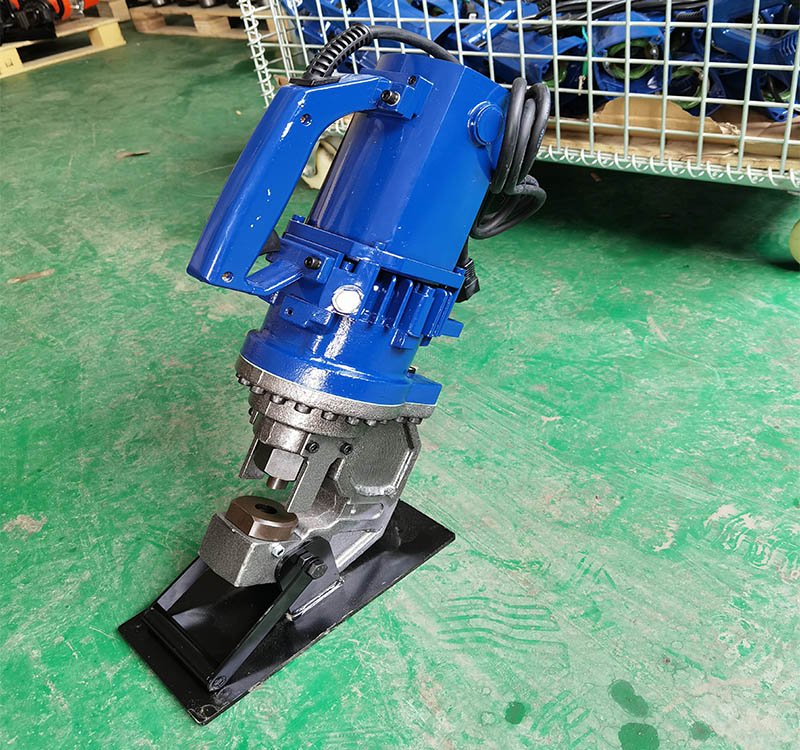

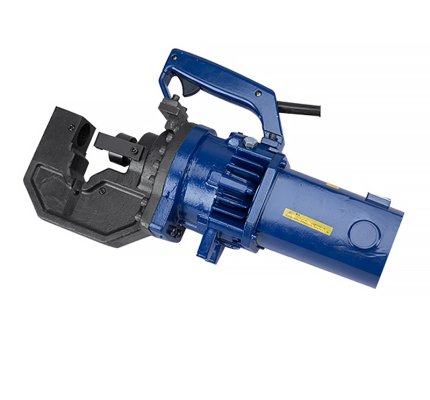

Hydraulic Hole Punchers MHP-25

The Hydraulic Hole Puncher is a versatile and efficient tool designed to effortlessly create precise holes in various materials. Equipped with an electric motor and a hydraulic system, it offers exceptional punching power and accuracy.

Inquiry Add To Cart

Product Details

Hydraulic Hole Punchers MHP-25

The Portable electric hydraulic puncher is used for punching steel, iron, copper, aluminum, formed steel, U-steel, I-steel and so on Small size, light weight, easy to operate, save effort and punch fast, and mold can be customized

Specifications

Model: MHP-25

Voltage: 220V/110V

Wattage: 1700W

Gross weight: 35.5kg

Net weight: 25kg

Punching speed: 4s

Maximum Hole Diameter: 25.5mm

Max thickness: 12mm

Packing size: 570mmx230mmx375mm

Machine size: 500mmx150mmx290mm

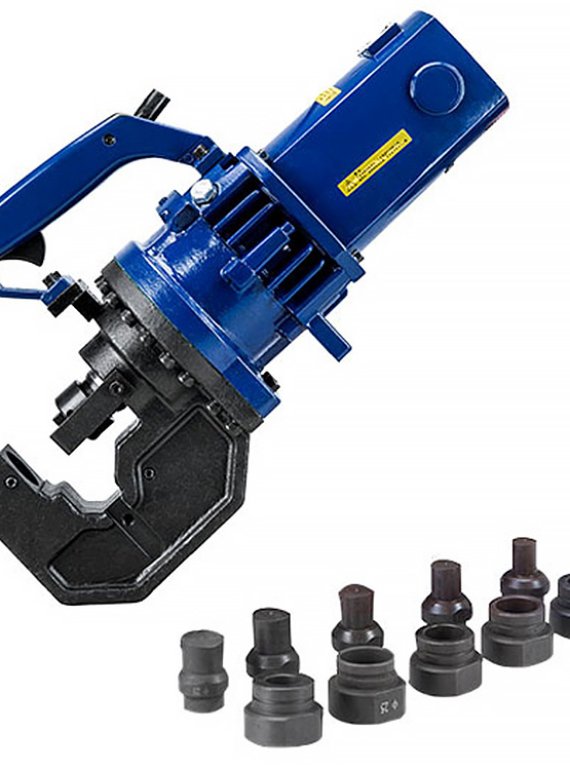

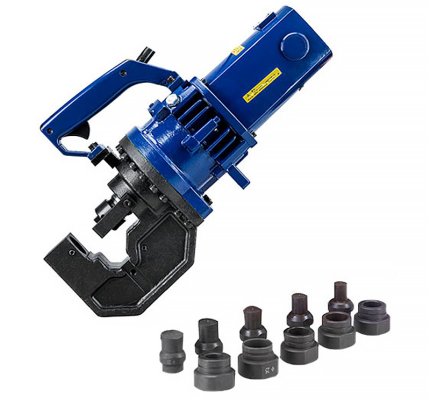

Mold hole diameter: 11mm/13mm/17mm/21.5mm/25.5mm(other size could be customized)

Certificate: CE RoHS PSE KC

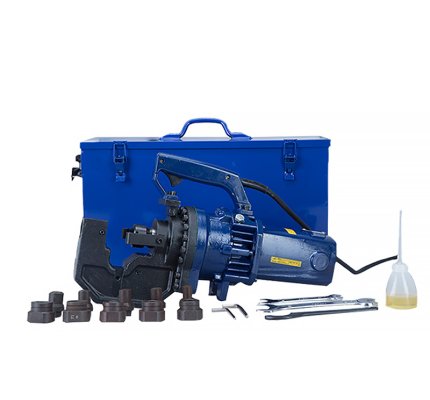

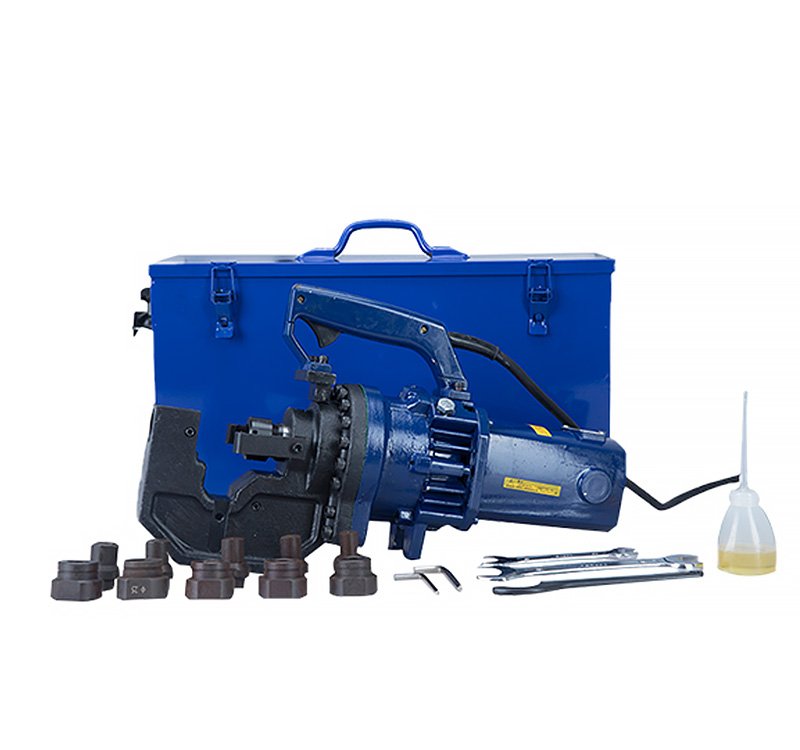

Package Inner iron box，outer 7-layer corrugated cardboard box

Model	MHP-20	MHP-25	MHP-32
Voltage	220V/110V	220V/110V	220V/110V
Wattage	900/1150w	1700w	3000w
Punch Speed	2s	4s	5s
Throat Depth	35mm	45mm	60mm
Max. Round Dia.	20mm	25mm	32mm
Min. Round Dia.	6mm	11mm	17mm
Punch Thickness	6mm	steel plate 10mm aluminum plate 15mm	steel plate 12mm aluminum plate 20mm
Machine Weight	12kg	24.5kg	35kg
Machine Size	500195100mm	500150255mm	520170270mm
Gross Weight	20kg	32kg	43kg
Package Size	545310180mm	565230345mm	630240350mm
Packing	one pc/metal box/cardboard carton

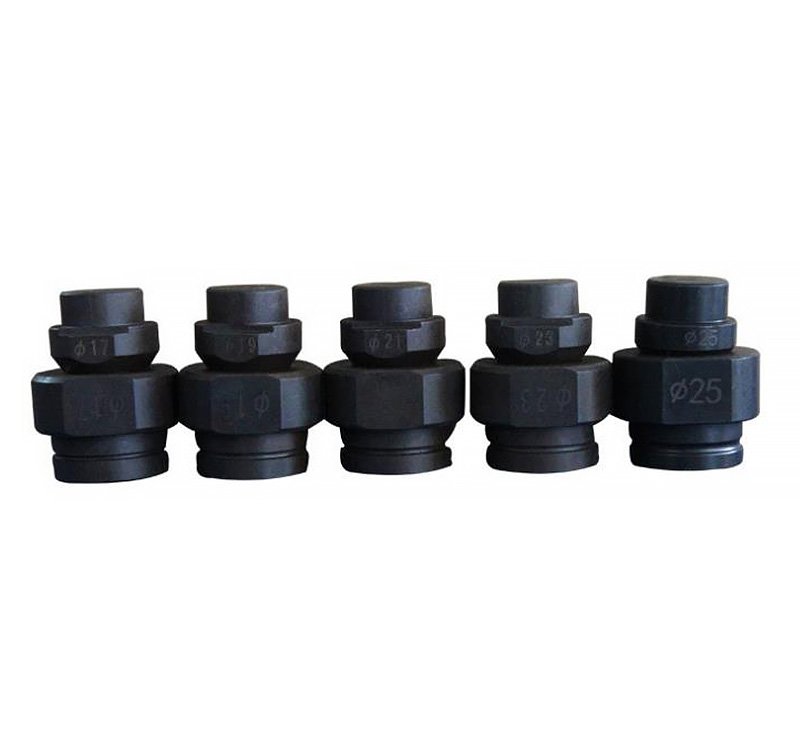

Attached Mold	Φ6.5/9/13/17/20.5mm	Φ11/13/17/21/25.5	Φ17/20.5/26/28/30.5mm
