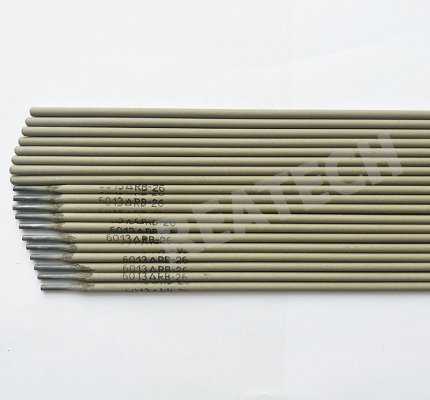

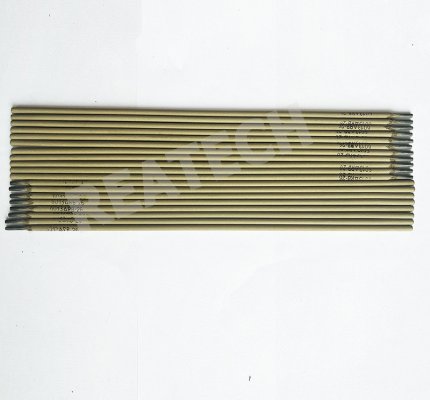

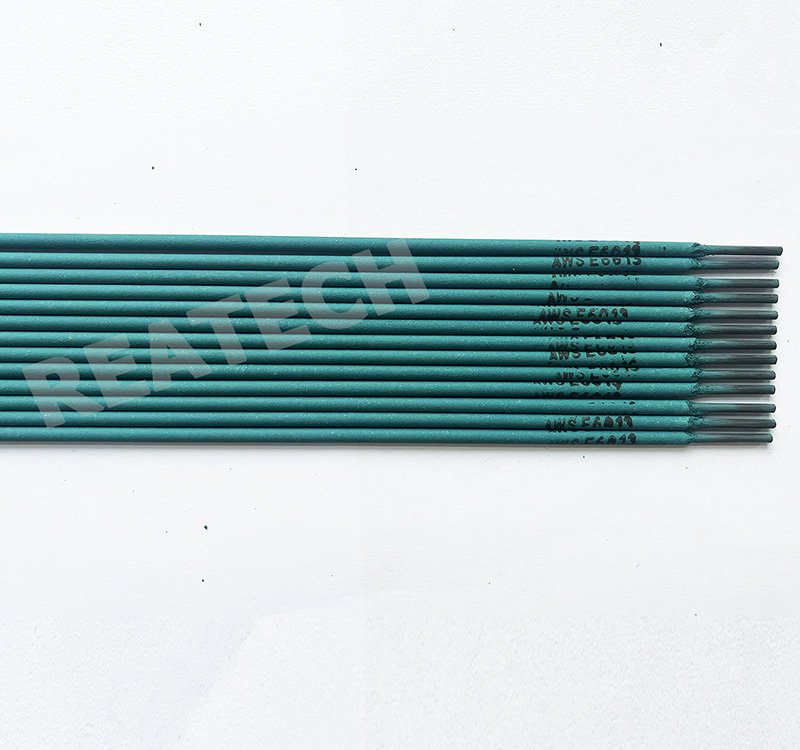

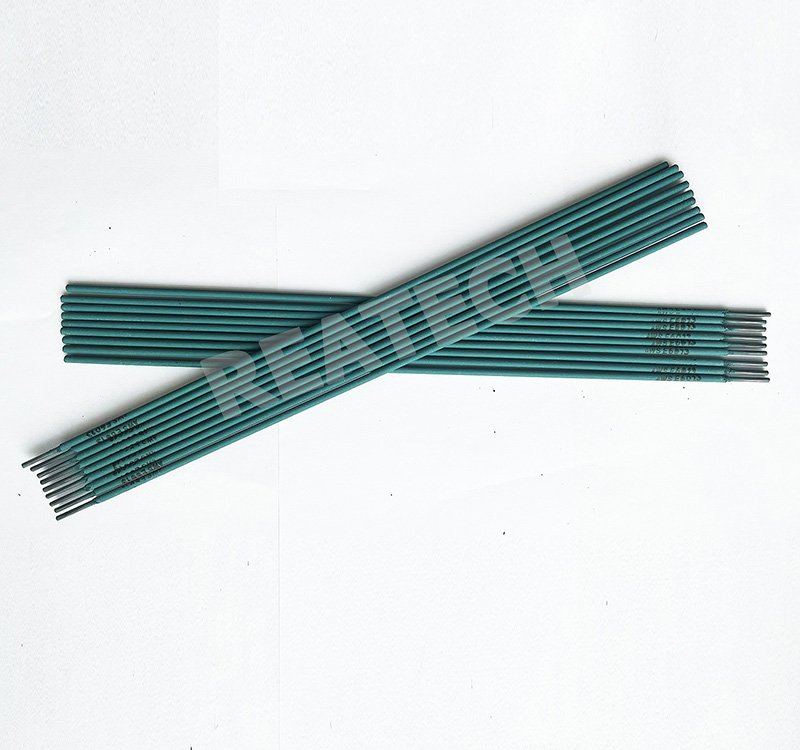

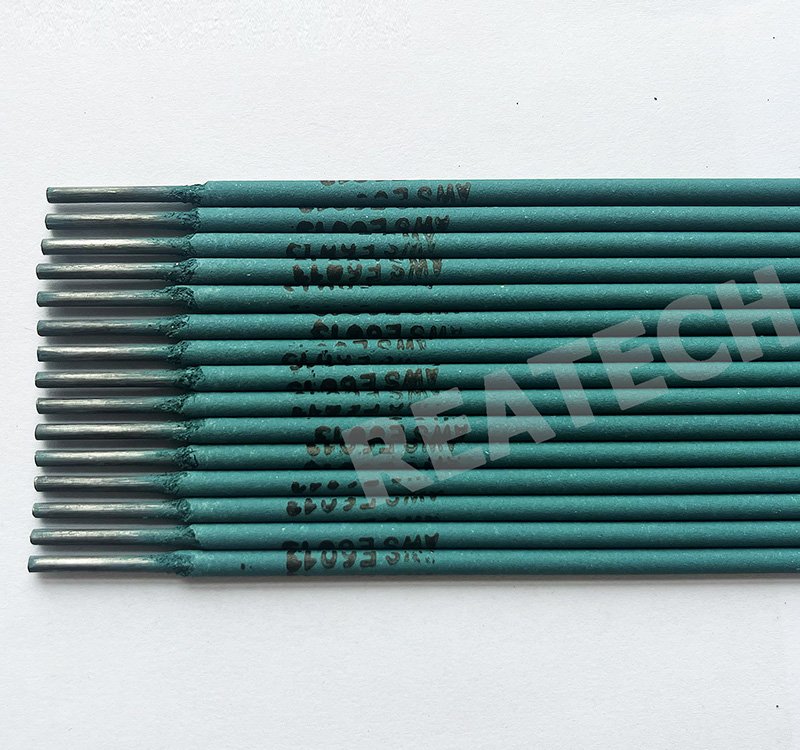

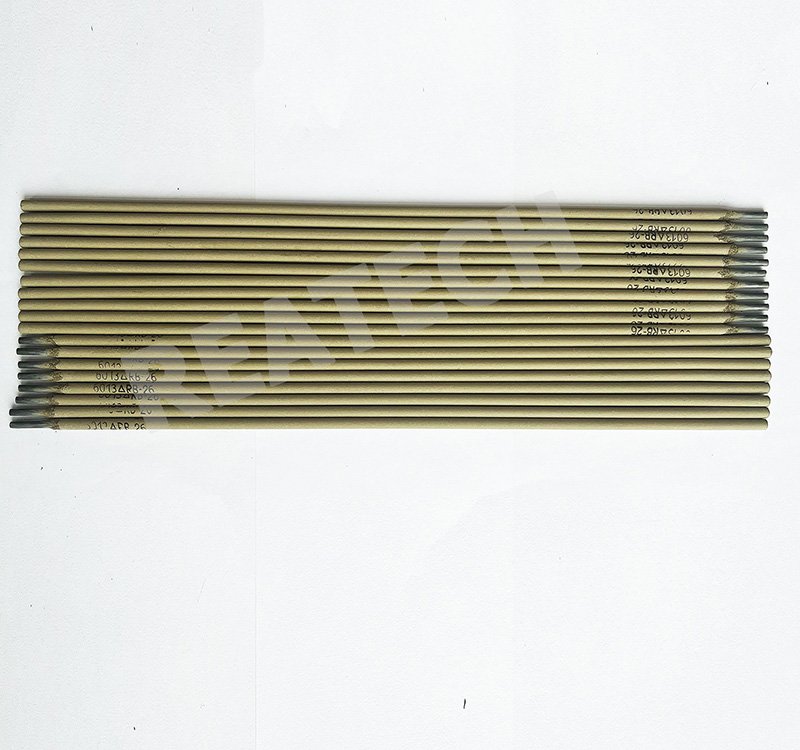

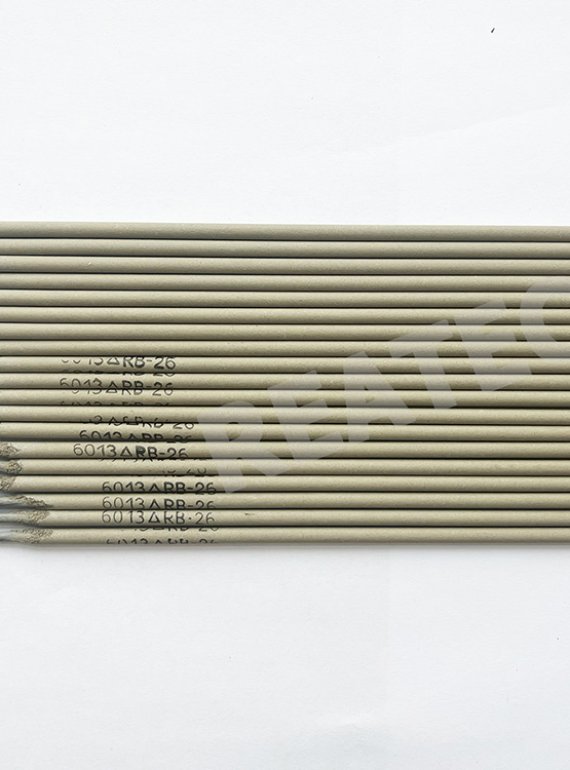

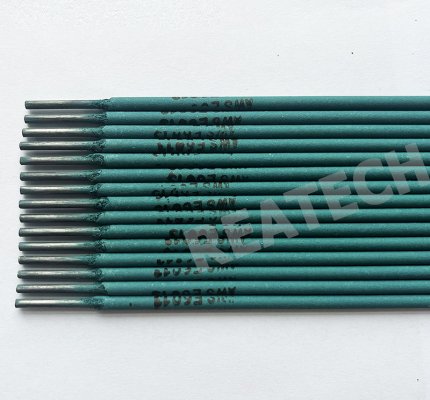

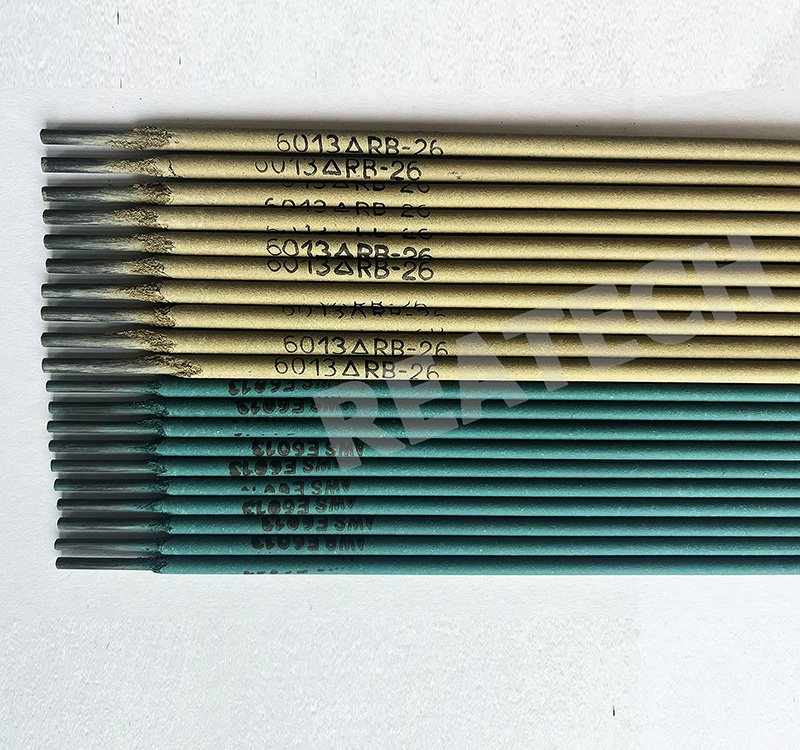

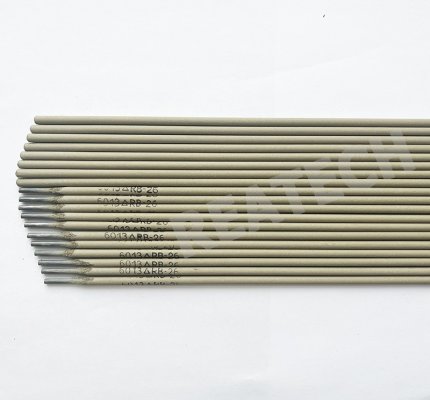

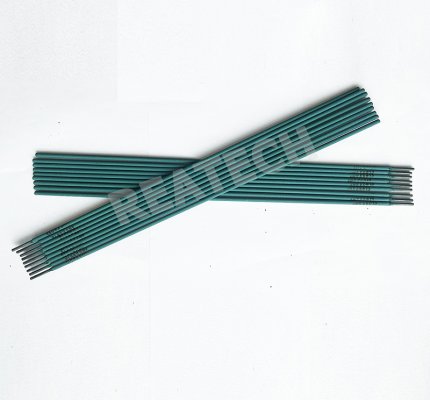

E6013 is a kind of carbon steel electrode with titania type coating. AC/DC. All-position welding. It has excellent welding performance, excellent operating performance, easy reignition, stable arc and beautiful appearance of weld.
Standard / classification
AWS A5.1 /AWS A5.1M: E6013
IS0 2560-A: E 38 0 RC 1 1
GB/T 5117:E4313
JIS Z 3211:D4313
Application: For welding low-carbon steel structures, especially suitable for welding on thin plates and cosmetic welding which requires the weld beads to be beautiful and glossy.
| Chemical Compossition of Deposited Metal(%) | ||||||||||
| C | Mn | Si | S | P | ||||||
| Guaranteed value | ≤0.12 | 0.3~0.6 | ≤0.35 | ≤0.035 | ≤0.040 | |||||
| Typical value | 0.070 | 0.400 | 0.250 | 0.019 | 0.025 | |||||
| Mechanical Properties of Deposited Metal | ||||||||||
| Rm (Mpa) | ReL(Mpa) | A(%) | KV2(J) | KV2(J) | ||||||
| Guaranteed value | σb≥420 | σs ≥ 330 | δ5 ≥ 17 | (normal temperature) | -(0°C) | |||||
| Typical value | 460～540 | ≥ 340 | 18～26 | 50-80 | ≥ 47 | |||||
| Sizes, Length & Recommended Current (AC/DC) | ||||||||||
| Diameter (mm) | φ2.0 | φ2.5 | φ3.2 | φ4.0 | φ5.0 | |||||
| Length (mm) | 300 | 300 | 350 | 400 | 400 | |||||
| Current (A) | 40~70 | 50~90 | 90~130 | 130~210 | 170~230 | |||||
X-ray Inspection: II
