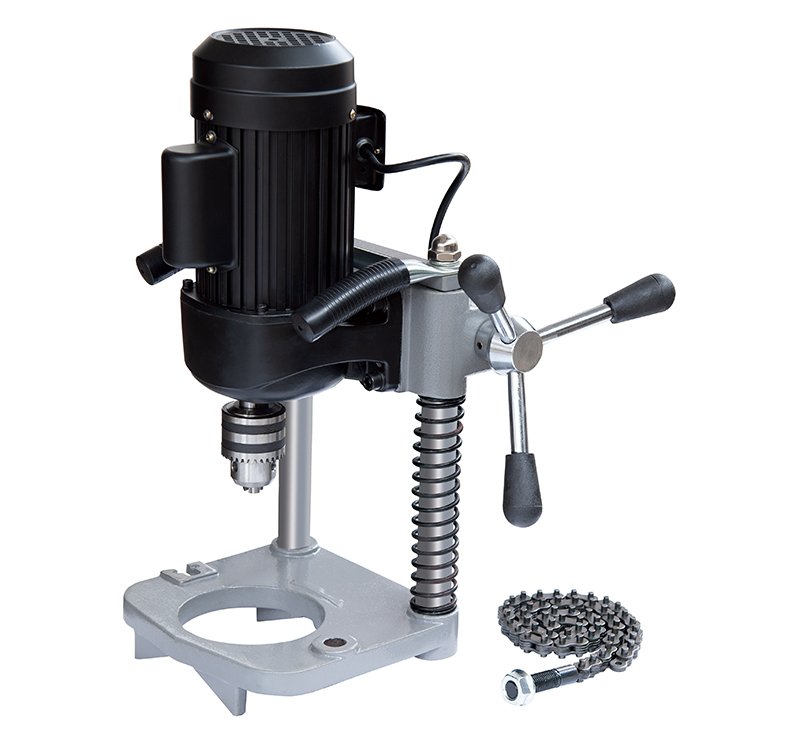

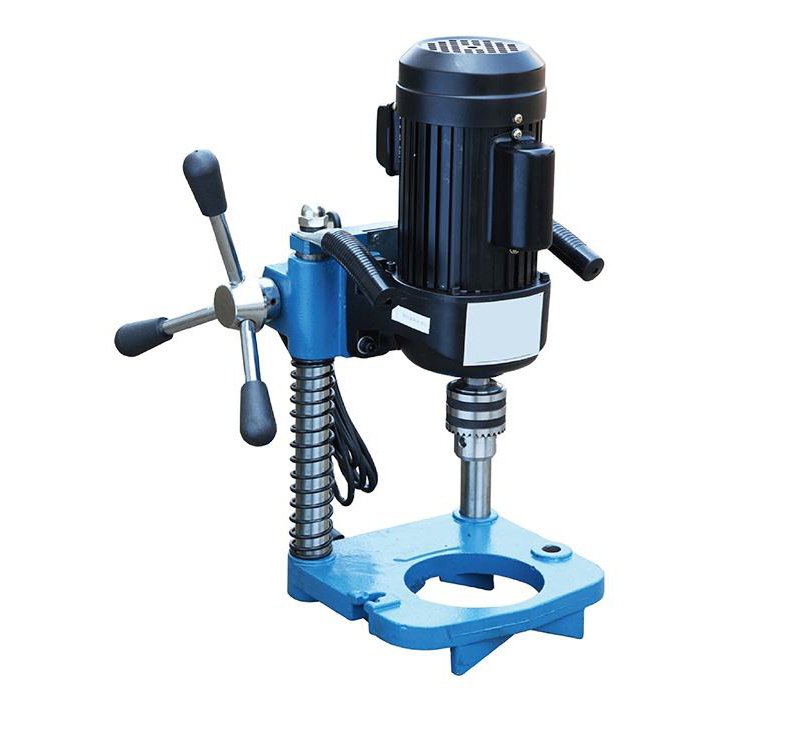

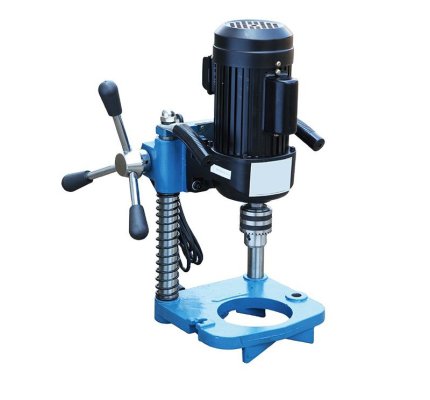

Pipe Hole Sawing Machine

Core Functional Capabilities

High-Torque Multi-Speed Drill Spindle:

· Mechanism: High-output universal or induction motor coupled with a heavy-duty industrial keyed drill chuck.

· Function: Drives industrial hole saws (bi-metal or carbide-tipped) at optimized rotational speeds through thick-walled carbon steel pipes.

· Benefit: Prevents tool bog-down and stalling, resulting in clean, circular holes without jagged edges.

Heavy-Duty Chain Clamping & Alignment System:

· Mechanism: High-tensile alloy steel chain clamp with a quick-tensioning lever and an integrated spirit level (bubble level).

· Function: Secures the machine firmly to any pipe diameter, ensuring the spindle is perfectly perpendicular to the pipe centerline.

· Benefit: Prevents machine oscillation or slipping during drilling, ensuring exact hole positioning and vertical alignment for mechanical tees.

Integrated Feed & Depth Travel Control:

· Mechanism: Ergonomic feed handle with a rack-and-pinion feed system and an adjustable depth stop.

· Function: Provides smooth, manual control over the drilling feed rate, allowing precise cutting depths and automated spring-back after drilling completion.

· Benefit: Protects the hole saw teeth from sudden impact damage and allows for rapid, repetitive boring operations.
