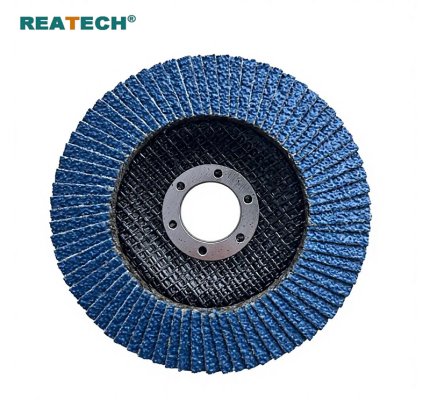

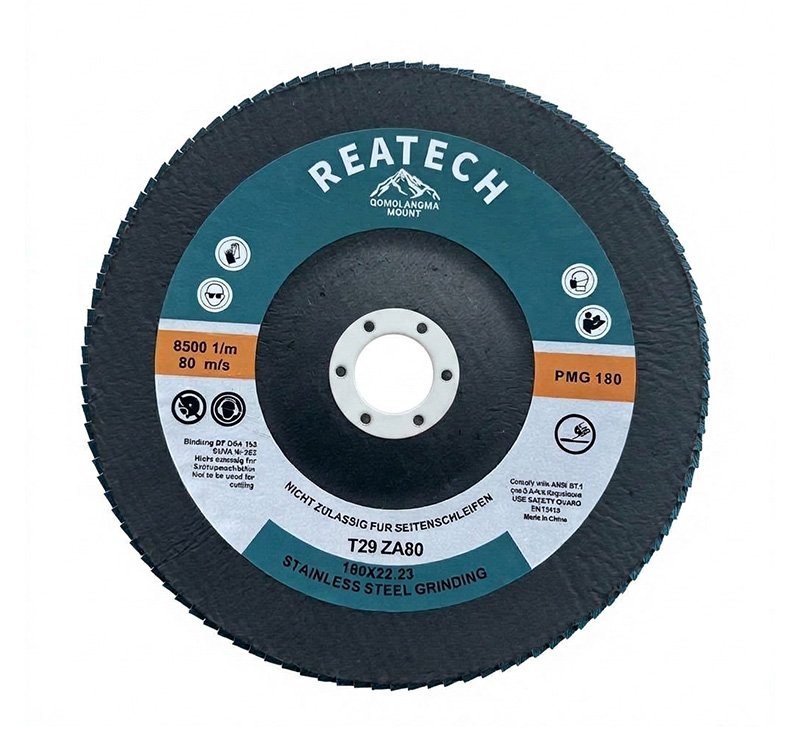

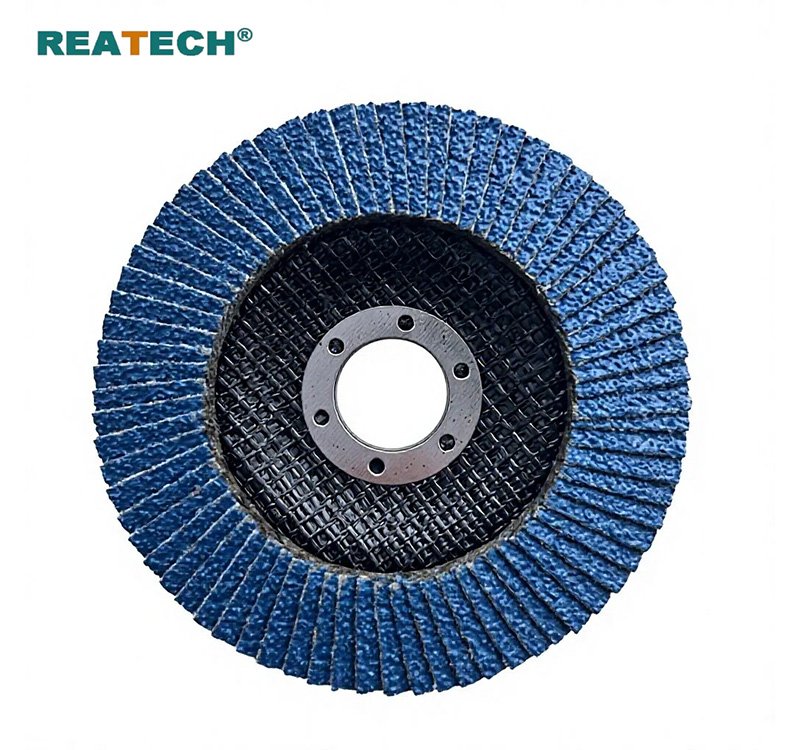

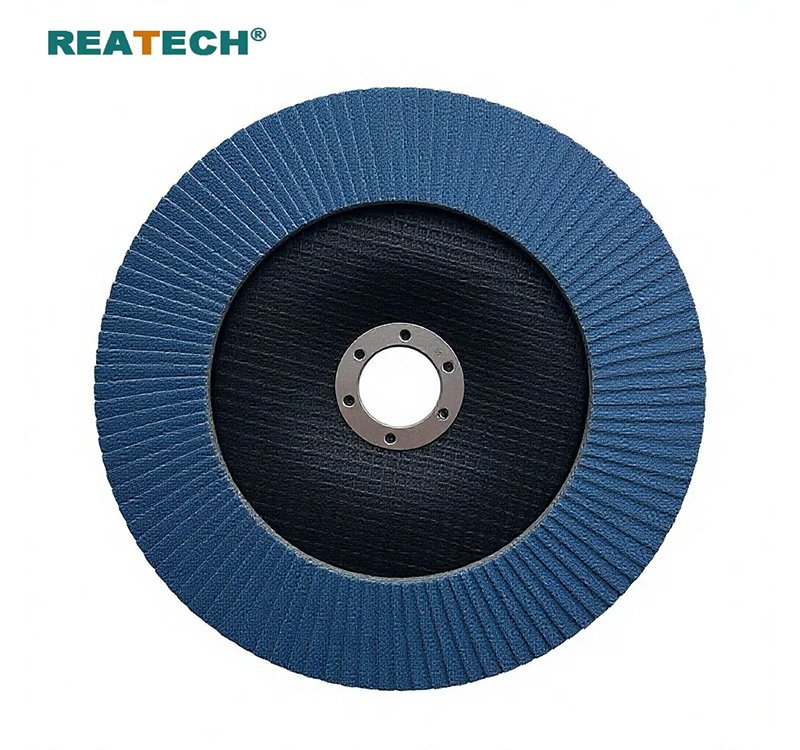

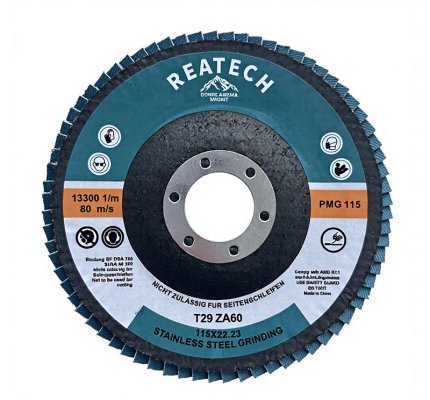

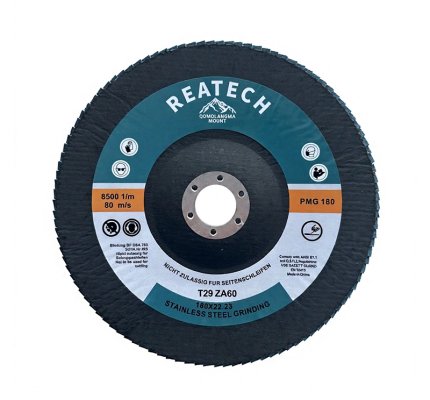

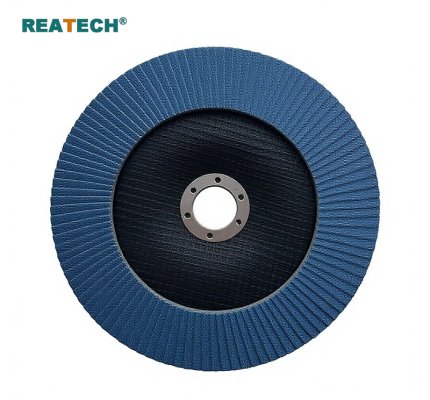

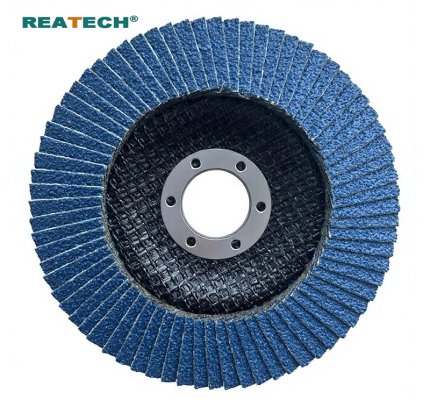

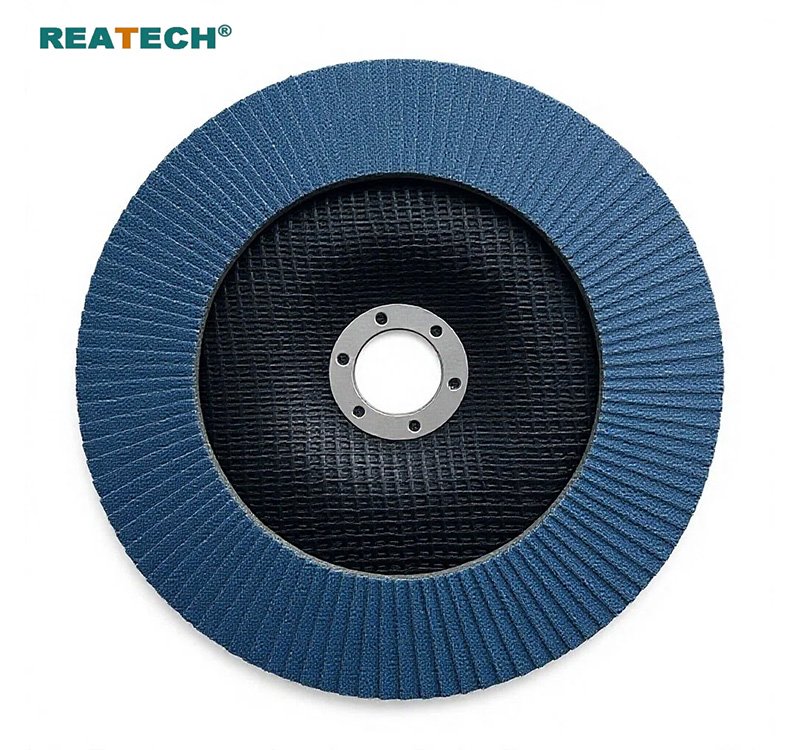

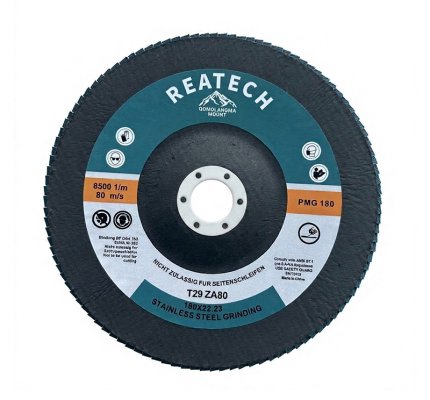

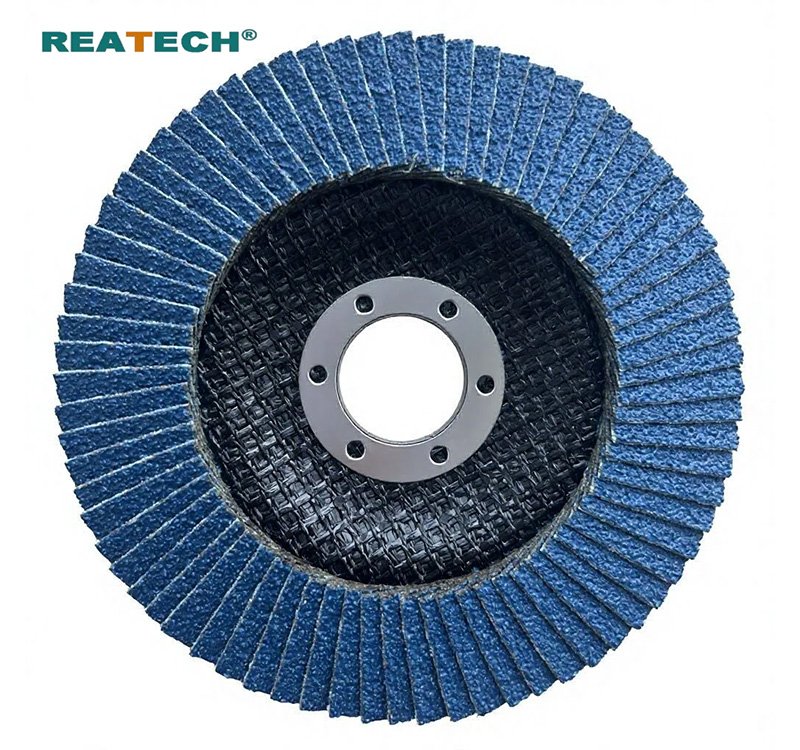

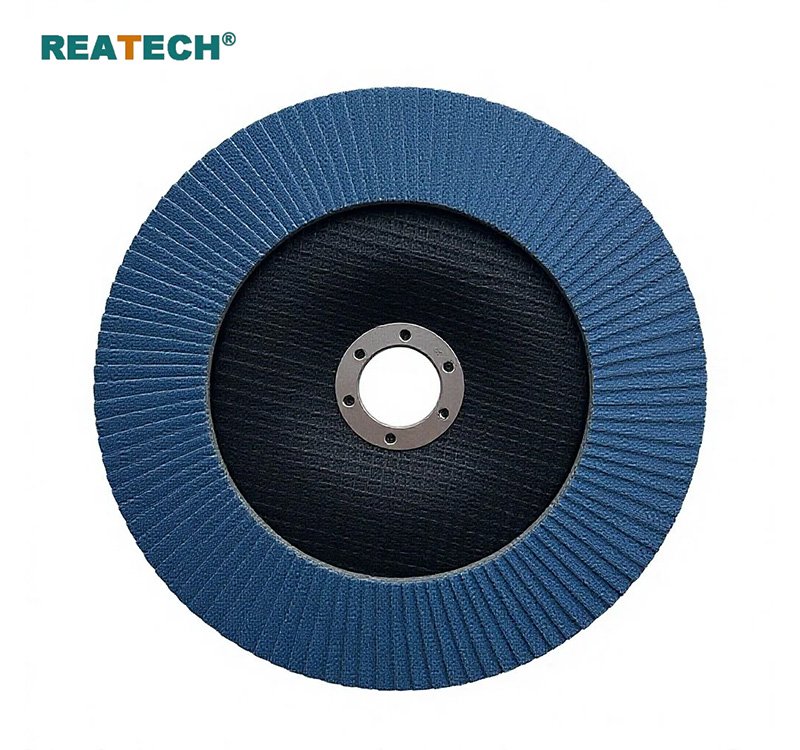

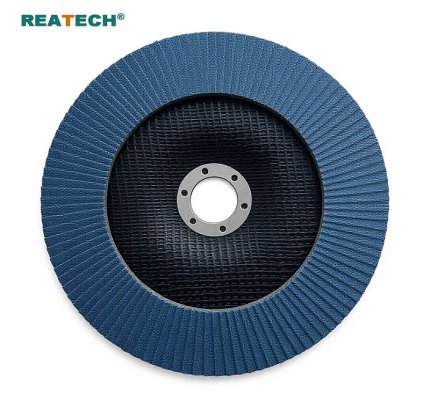

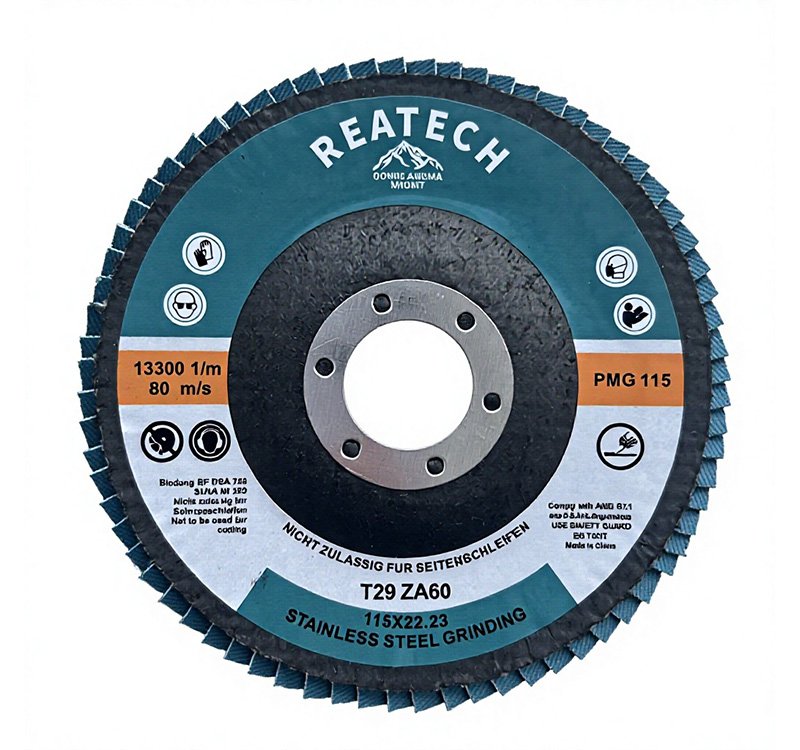

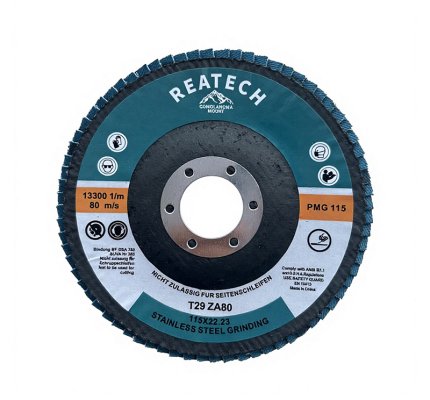

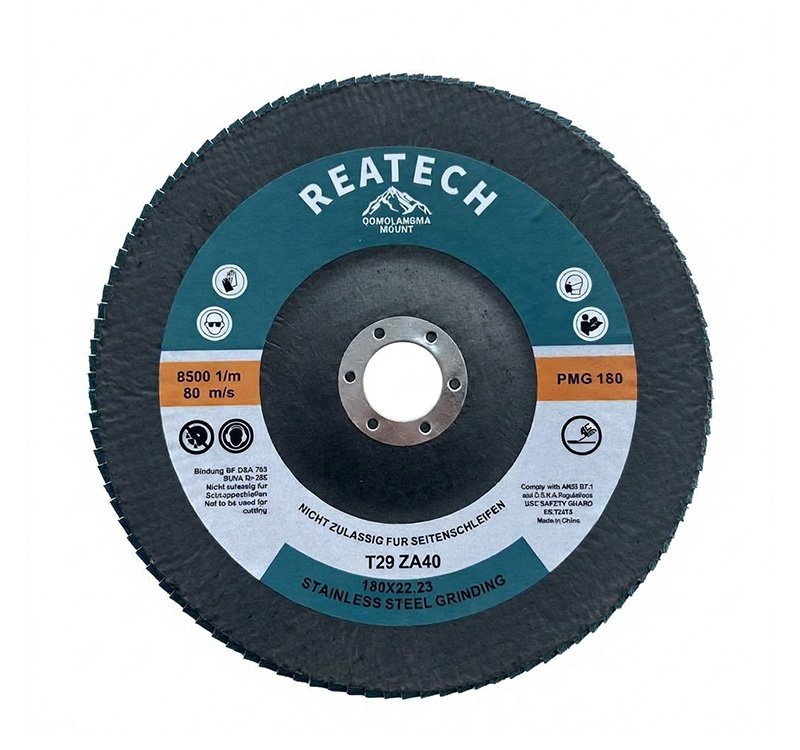

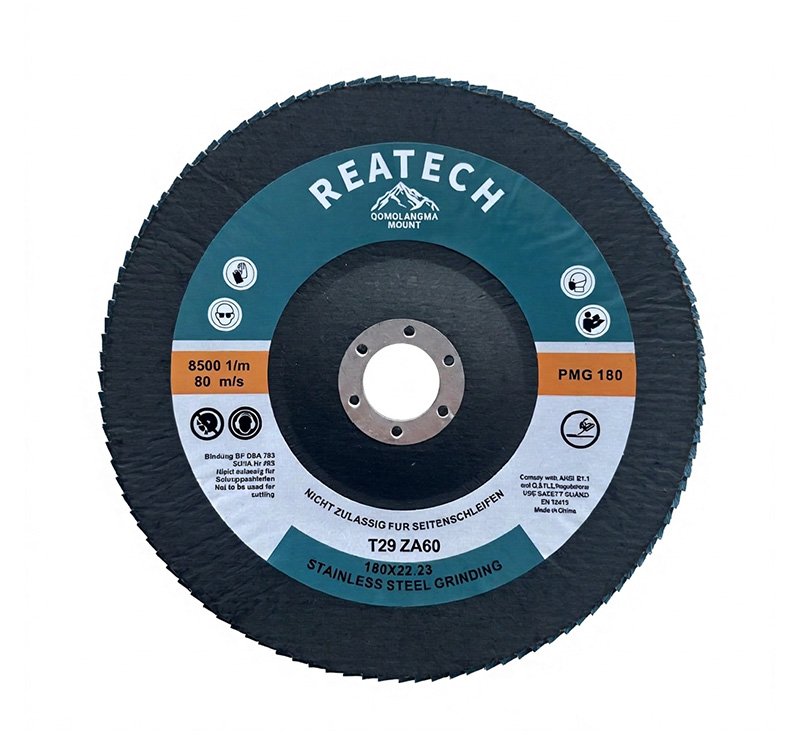

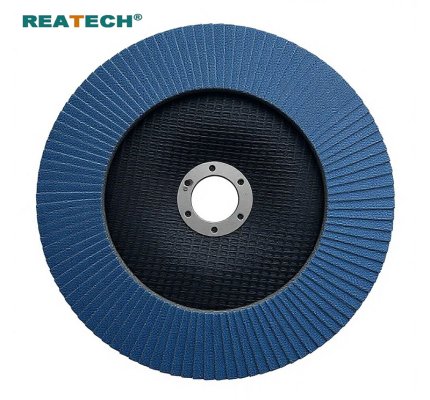

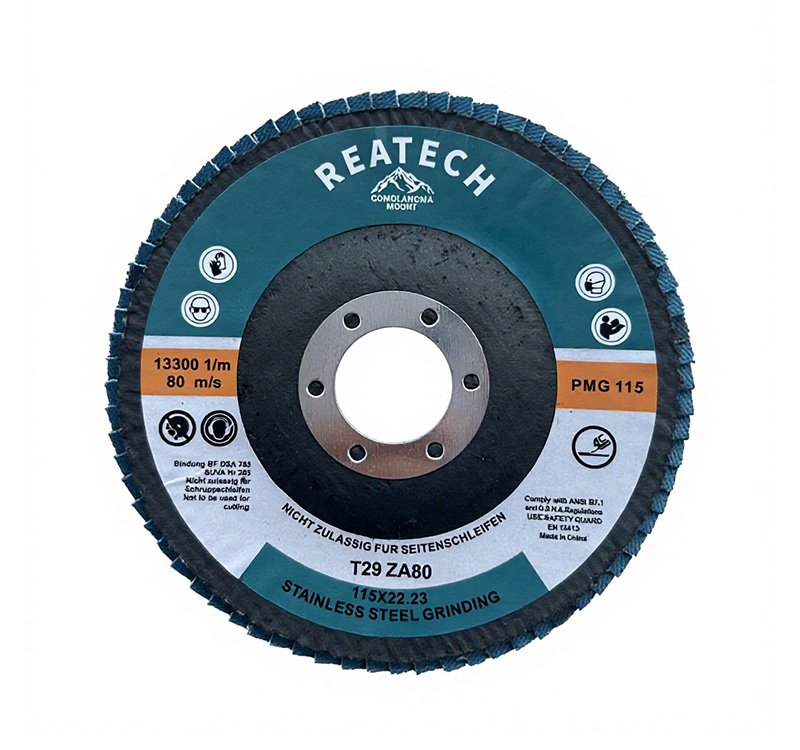

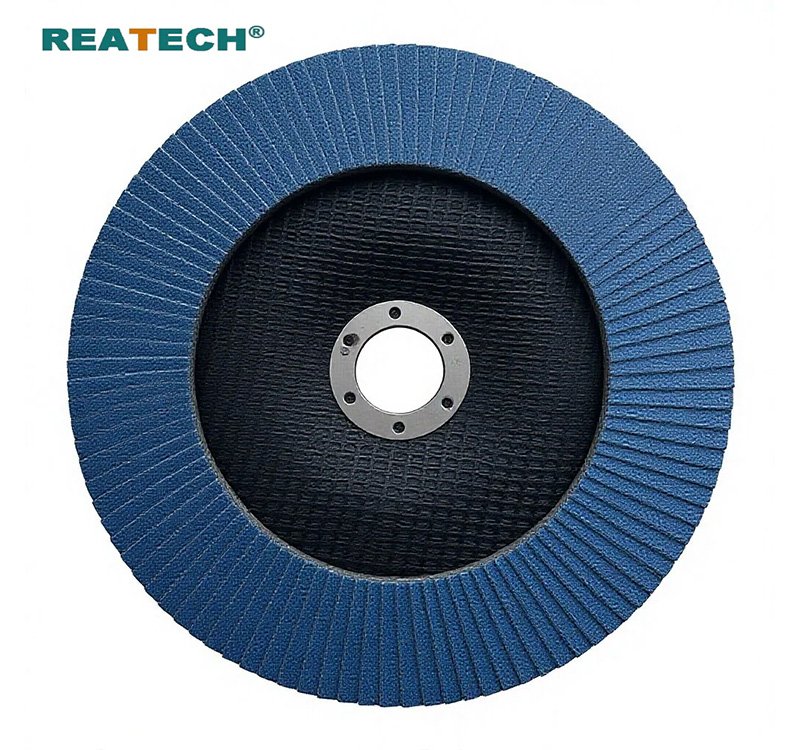

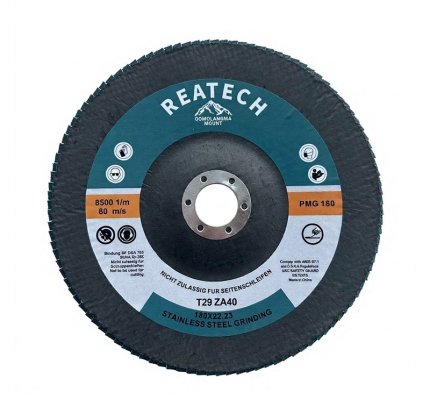

T29ZA Fused Zirconia Alumina Flap Discs

Fused Zirconia Alumina Flap Discs for stainless steel and steel parts

For grinding stainless steel, heat-resistant steel and high-alloy plates, the microcrystalline eutectic structure of fused zirconia alumina delivers ‌3-5 times longer service life‌ than ordinary aluminum oxide abrasives. It resists rapid passivation even during prolonged high-pressure grinding, drastically reducing downtime for disc replacement.

In weld root cleaning and thick weld layer dressing operations, the high-toughness zirconia alumina grains will not suffer large-scale abrasive shedding or edge chipping like standard flap discs. It maintains consistently high cutting force, with far higher metal removal per disc than conventional brown fused alumina products.

For large-scale rust removal and old coating stripping on ships and steel structures, the fiberglass backing of the disc offers strong support. It generates less vibration when working flat against steel plates, maintaining stable grinding performance even during long-hour handheld operations, with working efficiency ‌40% higher‌ than ordinary flap discs.

Dimensions

Flap Discs  Grinding and Polishing stainless steel and steel
T29ZA Fused Zirconia Alumina（Fiberglass Backing）						SHAPE
ITEM NO.	SIZE(MM)	INCH	GRIT	MAX.SPEED	PCS/CTN	G.W.(KG)	MEAS(CM)
RQO-FD100ZA40	100x16	4''x5/8''	40-120	80M/S	200	13	52x24x24
RQO-FD115ZA60	115x22	4.5'''x7/8''	40-120	80M/S	280	14	48x24x27
RQO-FD125ZA80	125x22	5''x7/8''	40-120	80M/S	200	18	52x26x27
RQO-FD150ZA80	150x22	6'''x7/8''	40-120	80M/S	200	19	52x26x27
RQO-FD180ZA80	180x22	7''x7/8''	40-120	80M/S	100	20	37x37x29

Usage：Mainy used for grinding and polishing stainless steel and steel parts.

Machines Used On

Angle Grinders sized 4-1/2" to 7".

Excellent Flexibility:

The flap disc (also known as a flap wheel) is made of multiple overlapped abrasive cloth flaps offering strong flexibility;

the work-piece surface is well conformed to it, and improve grinding performance.

Superior Heat Dissipation:

The structure and design of flap discs can release heat consistently, preventing from surface burning caused by high temperatures during grinding process.

High Safety and Low Noise:

Its low-noise and low-vibration performance fits non-fixed workstation scenarios such as auto repair sites and outdoor construction projects.

Good Self-Sharpening:

New abrasive grains are continuously exposed after the abrasive grains wear or finished, , ensuring consistent grinding performance.

Easy to Operate:

 Handheld operation causes far less fatigue over long periods, and it delivers higher operational safety than traditional resin depressed-center grinding wheels
